Ausstattung:
- Relaisfernsteuerung mit 3,7 m Fernbedienungskabel
- Aluminium-Seilfenster
- Seilfreilaufkupplung
- Kunststoffseil mit Sicherheitshaken
- deutsche Bedienungsanleitung
Alle WARN Seilwinden der Produktreihe ZEON sind gemäß IP68 geprüft.
Technische Daten:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| ELECTRICAL CONTROL TYPE | Solenoid |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 216:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 80 Feet |
| LINE MATERIAL | Synthetic |
| FAIRLEAD TYPE | Hawse |
| REMOTE TYPE | 12 Feet Lead |
| OPERATION TYPE | Automatic |

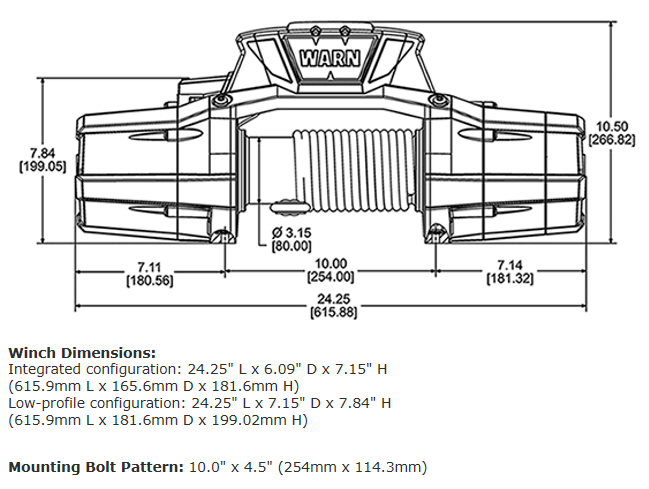

| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| COLOR | Black |
| DRUM MATERIAL | Aluminum |

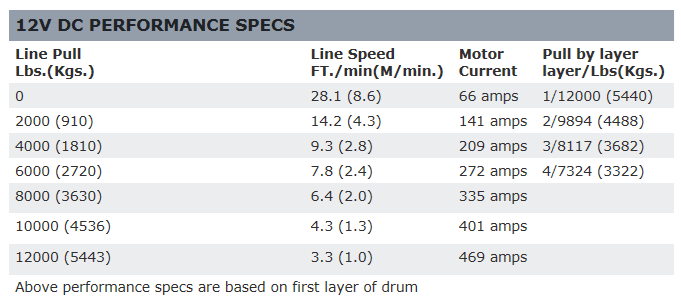

| MAX AMP DRAW/ LINE PULL | 469 Amp Draw/ 12000 Pound |
| MAX LINE PULL/ LINE SPEED | 12000 Pound/ 3.3 Feet Per Minute |
