ARB Bull Bars
Vital for rural and remote area travel, ARB bull bars will provide substantially improved protection for vulnerable mechanical components against animal strikes whilst providing a solid base for mounting other accessories like driving lights, winches and CB antennas.
ARB bars are superbly engineered and manufactured to not only maintain maximum functionality, but also to ensure they complement the look of the vehicle.

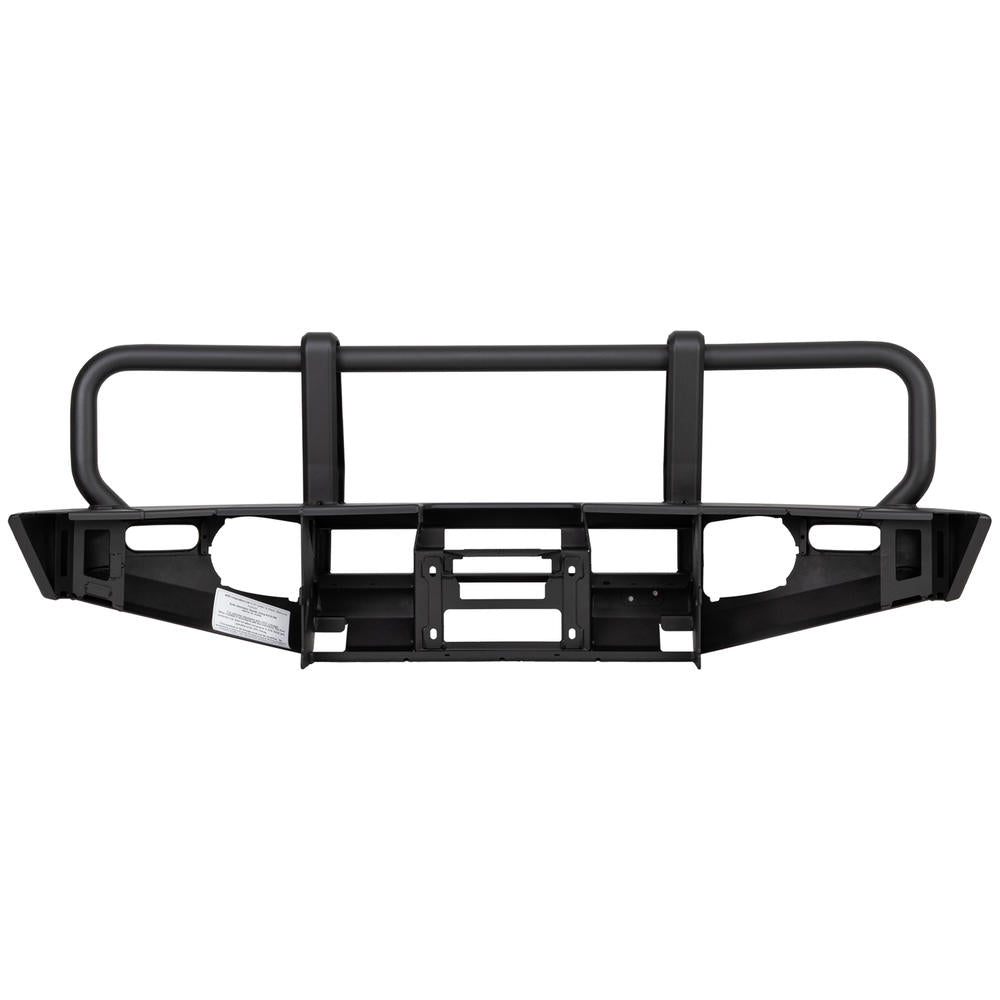

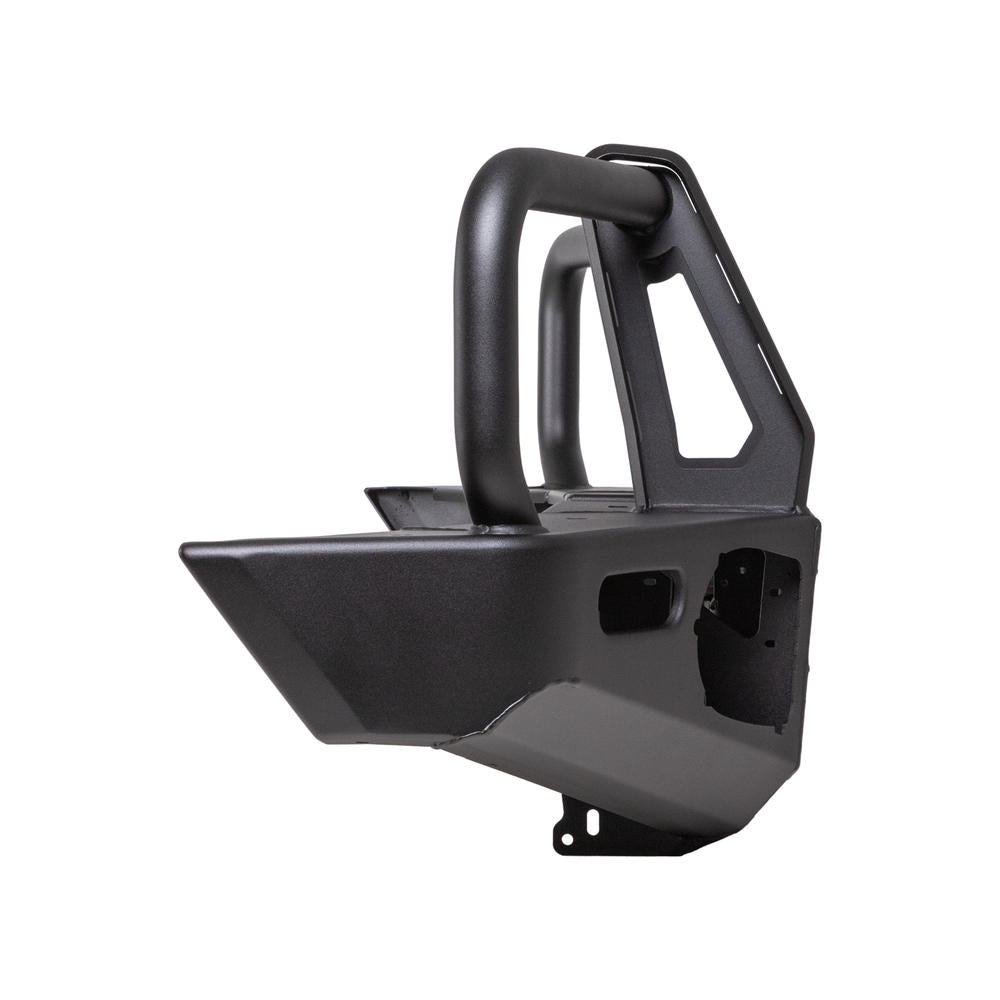

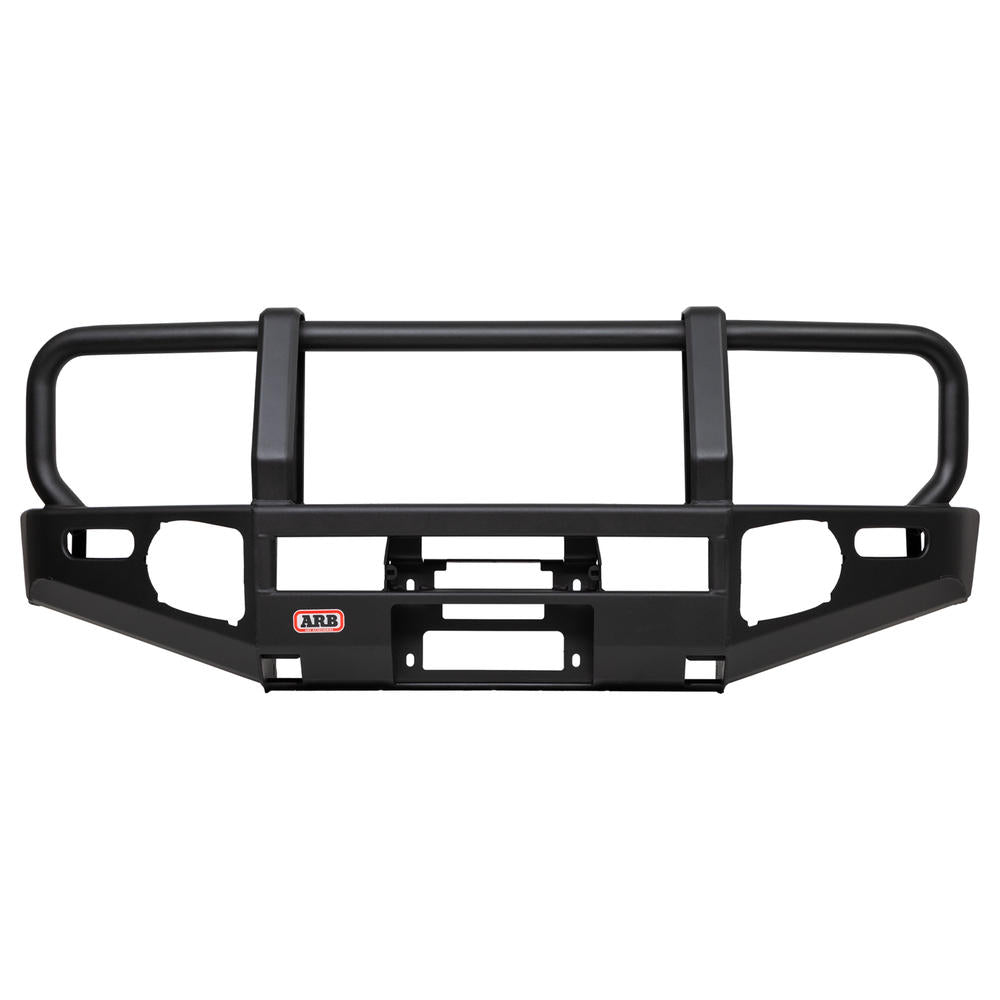

Summit Bull Bars
The Summit bull bar builds on the renowned ARB Deluxe bar architecture, and integrates a fresh and contemporary design language to complement modern vehicles.
Summit bars are winch compatible and provide next generation protection and styling for your vehicle. Provisions for mounting ARB Intensity LED, IPF and Bushranger driving lights are integrated into the top pan of the bar, while ARB’s LED, indicator and clearance light assembly is included as standard.
Supplied in a durable integrit textured black powdercoat finish. Integrit is not suitable for colour coding.

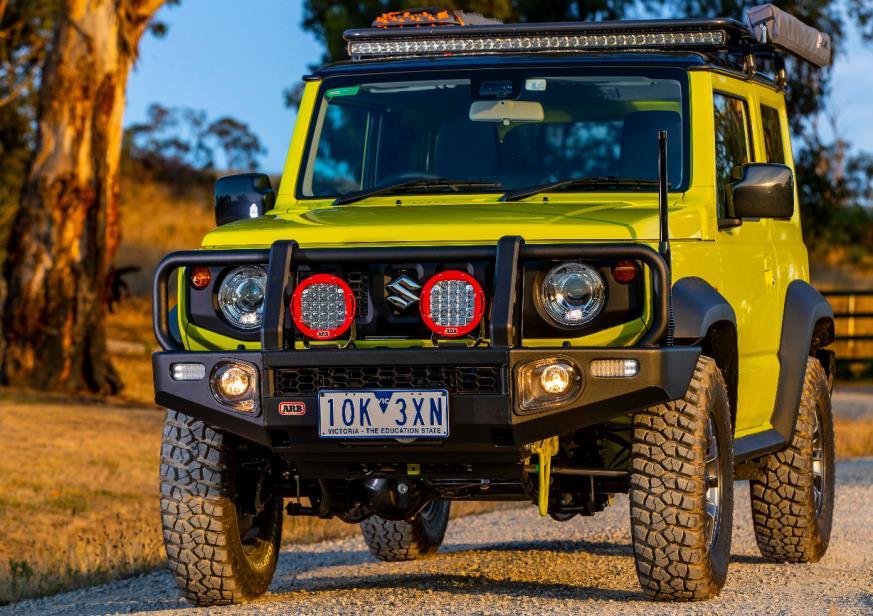

Note: Bar shown with OE Suzuki fog light fitted.
Features
- Vehicle specific design to complement the Suzuki Jimny MY19
- Durable steel construction for maximum protection
- Incorporates ARB’s renowned multi-fold upswept and tapered wing design for optimum strength and approach angle
- 10mm radius on wings and centre section
- Engineered, air bag compatible mounting system secures to chassis via high tensile M10 fasteners
- Split pan design for maximum strength and airflow
- Three piece grille design for split pan
- 47.6mm outer tubing and centre cross bar
- Formed cover straps
- Pressed form top pan and aluminium winch cover panel (powder coated black)
- Combination style bar to suit both winch and non winch applications
- Twin ARB Jack or Hi-Lift jack points adjacent to the bar uprights
- Will accommodate Warn and mid frame winches up to 8,000lb
- Provision to accommodate ARB Intensity LEDs and a range of IPF and Bushranger driving lights
- Provision for OE headlight washers
- Provision for OE foglights
- Provision for optional ARB Fog Light Covers
- Includes ARB LED indicator & clearance light
- Finished in Integrit textured black powder coat. Integrit is not suitable for colour coding.
Dieser Artikel wird ohne Teilegutachten oder Prüfbericht geliefert. Durch die Montage erlischt die Betriebserlaubnis des Fahrzeuges, wenn nicht unverzüglich eine, gemäß StVZO §19, Abs. 2 in Verbindung mit §21 vorgeschriebene Prüfung durchgeführt wird. Nach der Durchführung der technischen Änderung ist das Fahrzeug deshalb unverzüglich einem amtlich anerkannten Sachverständigen einer Technischen Prüfstelle vorzuführen.
Dem jeweiligen Sachverständigen/Prüfer steht es jedoch frei, eine Eintragung abzulehnen!
Außerdem liegt bei allen Teilen der Fa. Long Ranger Tanks, ARB, OME etc. ausschließlich eine englische Montageanleitung bei.
