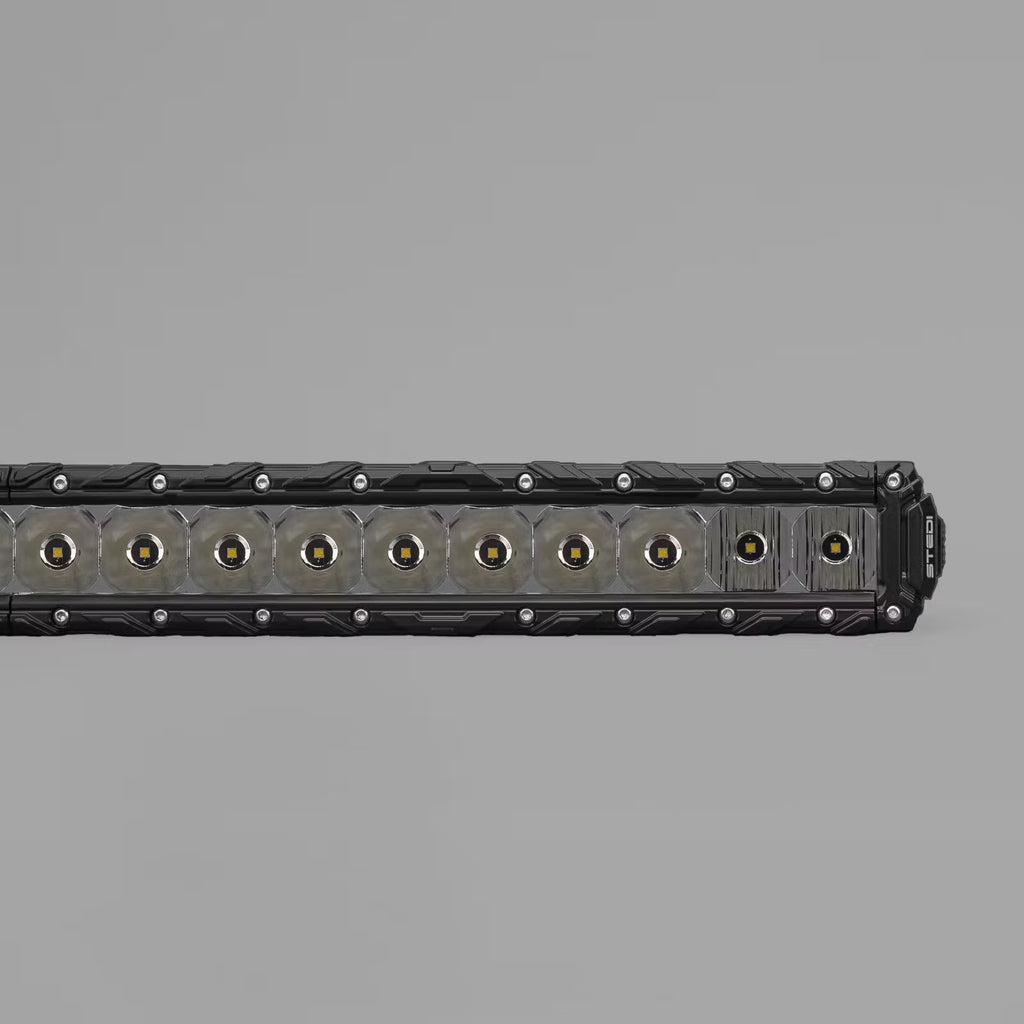

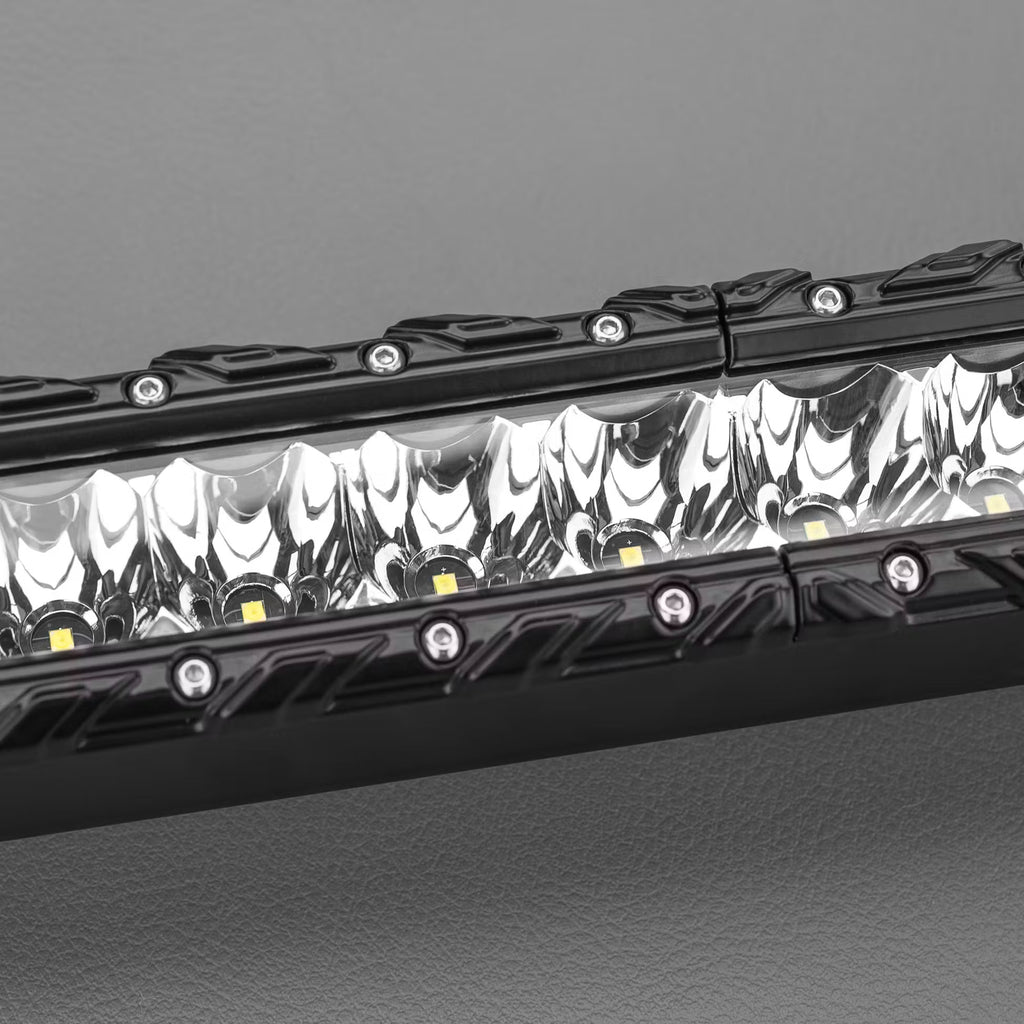

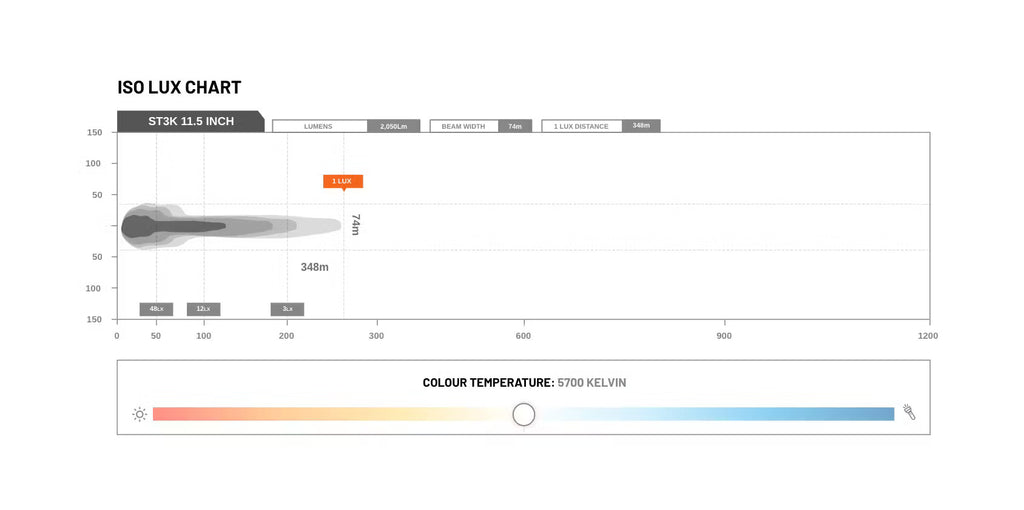

STEDI introduces its new ST3K series 11.5 inch LED light bar. Operating 10 of the finest OSRAM® OSLON® LEDs with a combination of 2 Flood + 6 Spot + 2 Flood reflector distribution forms a remarkable beam that includes the wide beam at 50° and the spot beam at 5.8° up to 1 lux 348m radiates.

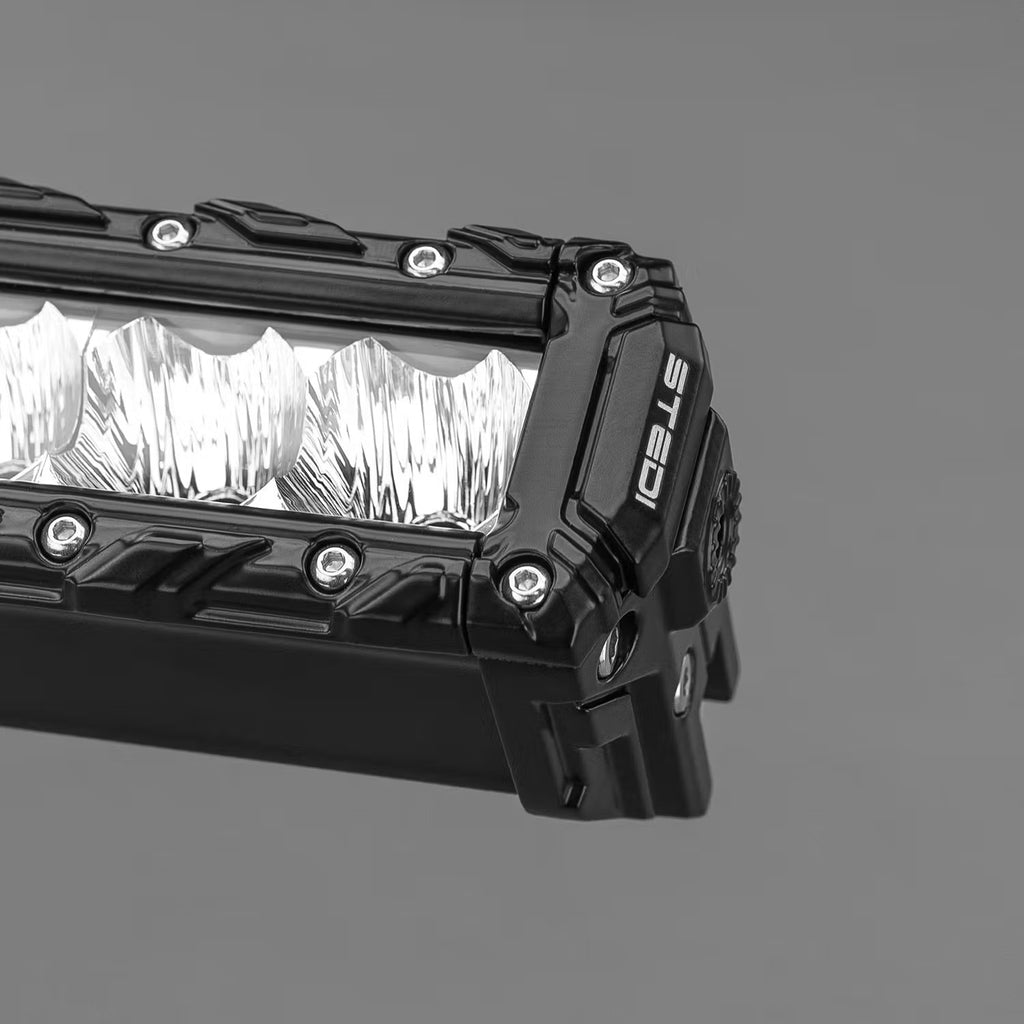

Based on our highly successful ST(X)K LED and reflector platform, but with a flat design. Our ST3K range is specifically designed for applications that require zero backlash while still providing maximum performance.
Technical data
| LED | 10 x Osram Oslon White |
| Effective lumens | 2,050Lm |
| Peak Intensity (Candela) | 121,600cd |
| Operating voltage | 10-30VDC |
| IP ratings | IP68 |
| Current Draw | 2.1A @ 13.6v |
| Color Temperature (CCT) | 5700 Kelvin |

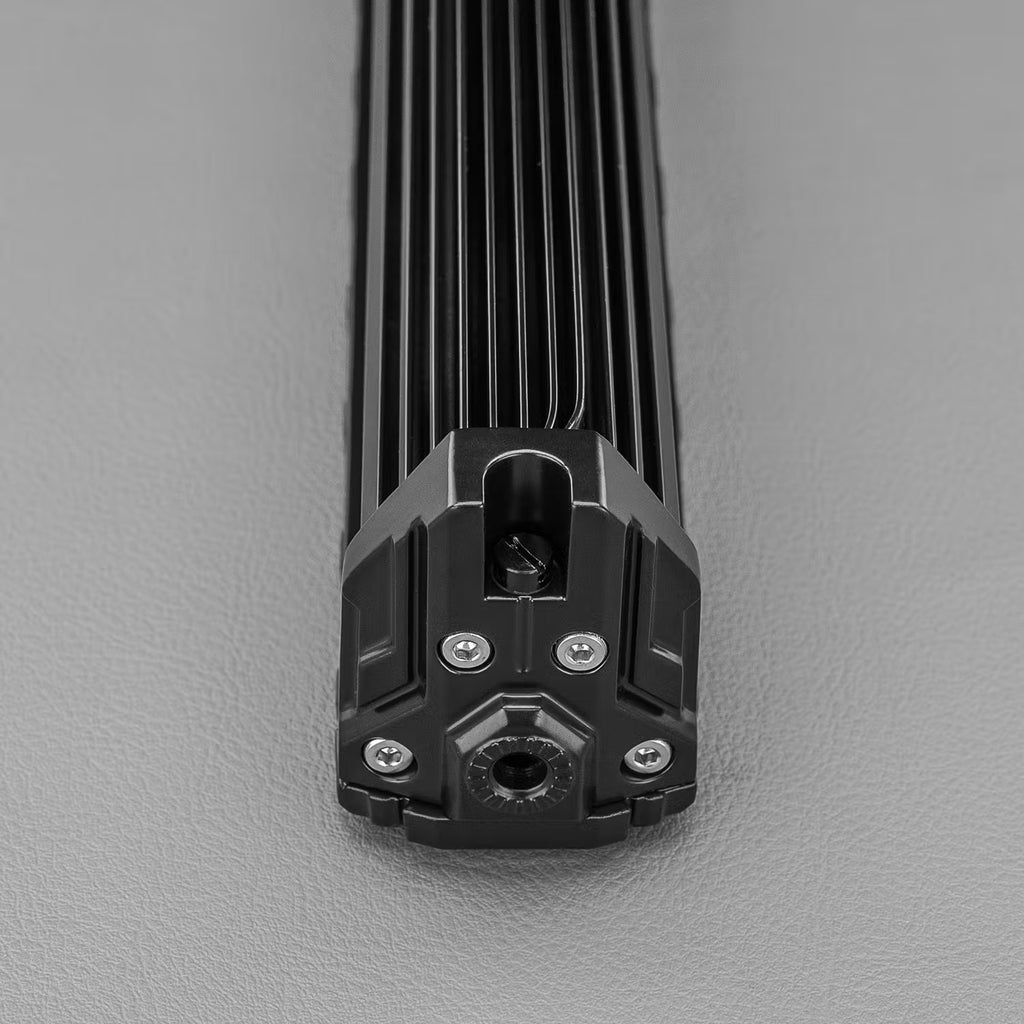

| Housing material | Aluminum Extrusion & Cast |
| Lens | GE™ Lexan |

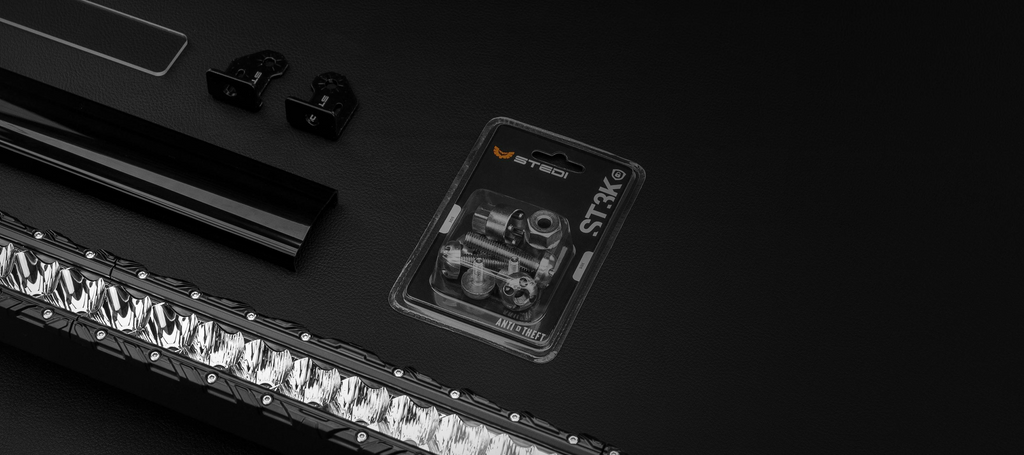

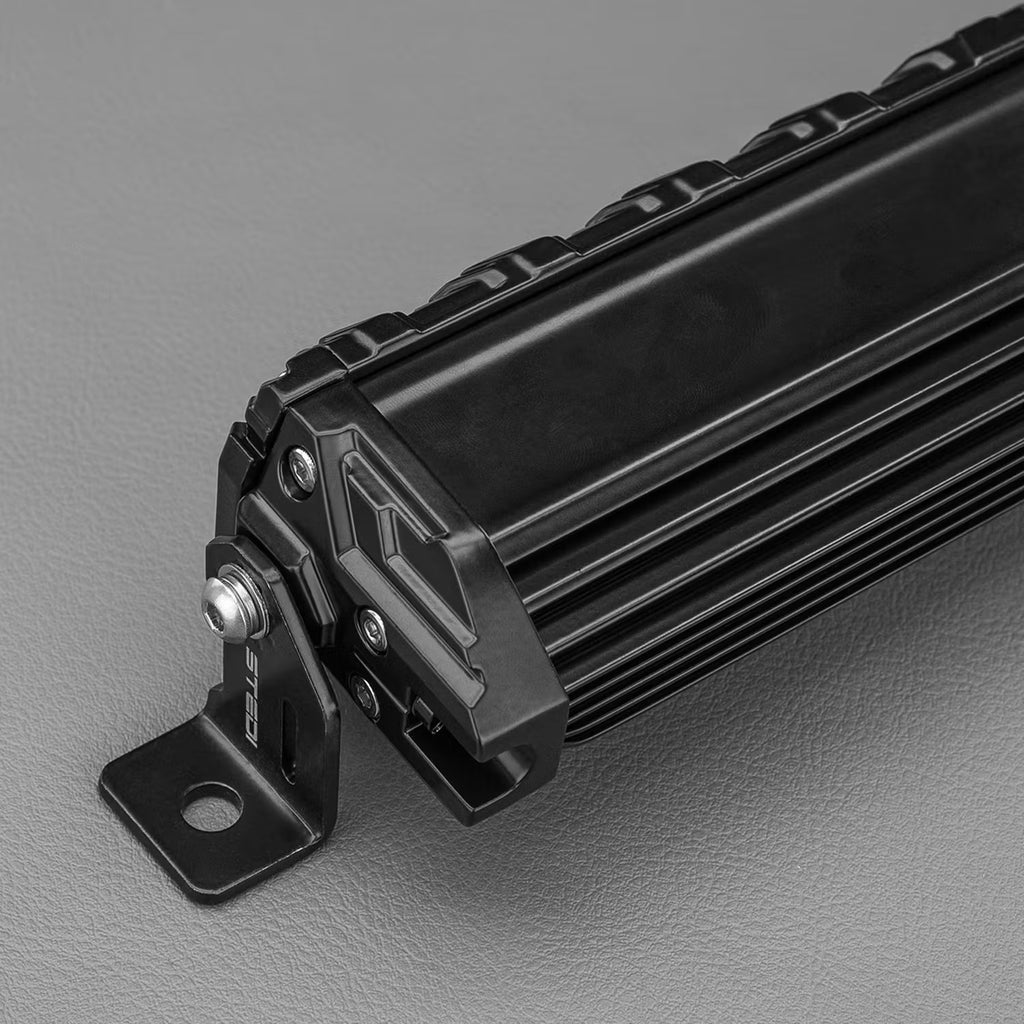

| Mounting bracket | Powder Coated 3mm Stainess Steel |
| Bolts and Fittings | 3 Series Stainless Steel |
| Beam type | Flood spot combo |
| Life span | 50,000 Hours |
| Weight | 1,650 |
| Operating environment | -40 - +50° Celsius |
