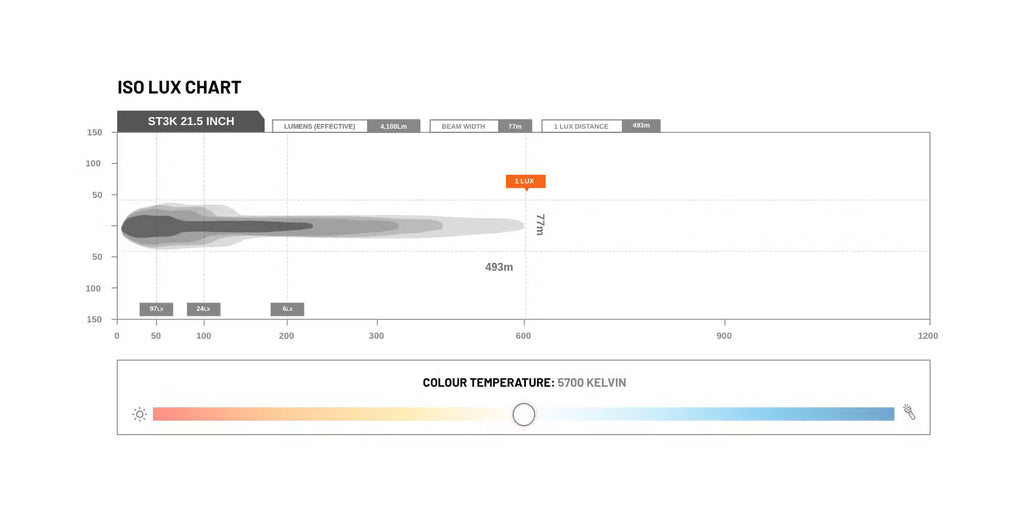

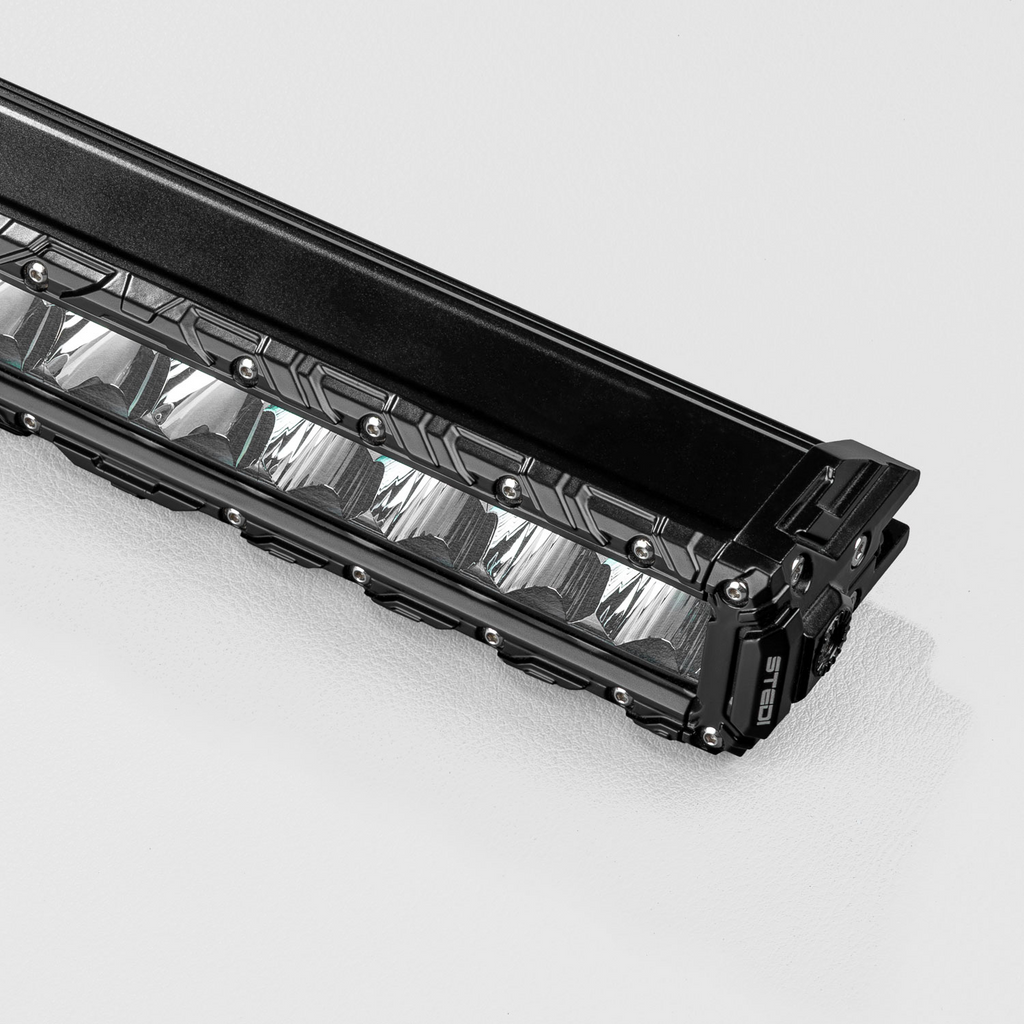

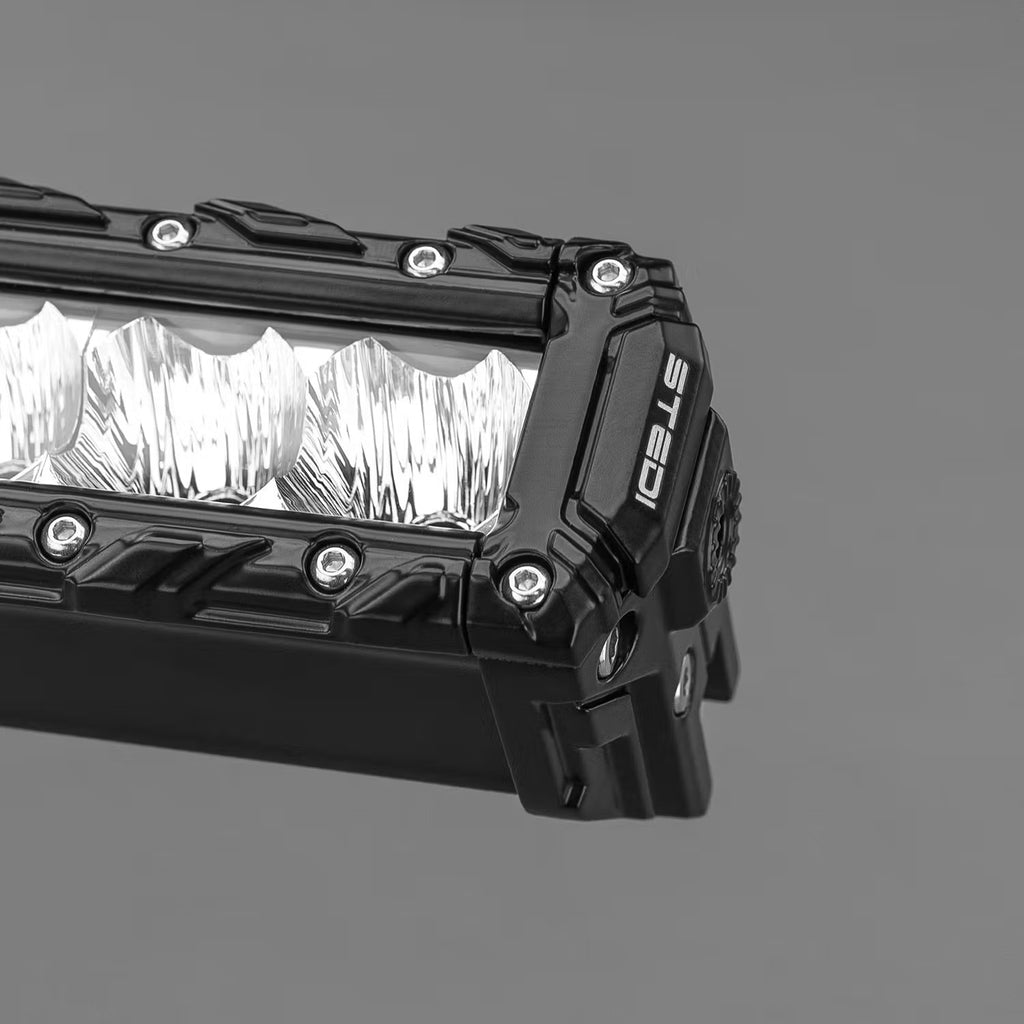

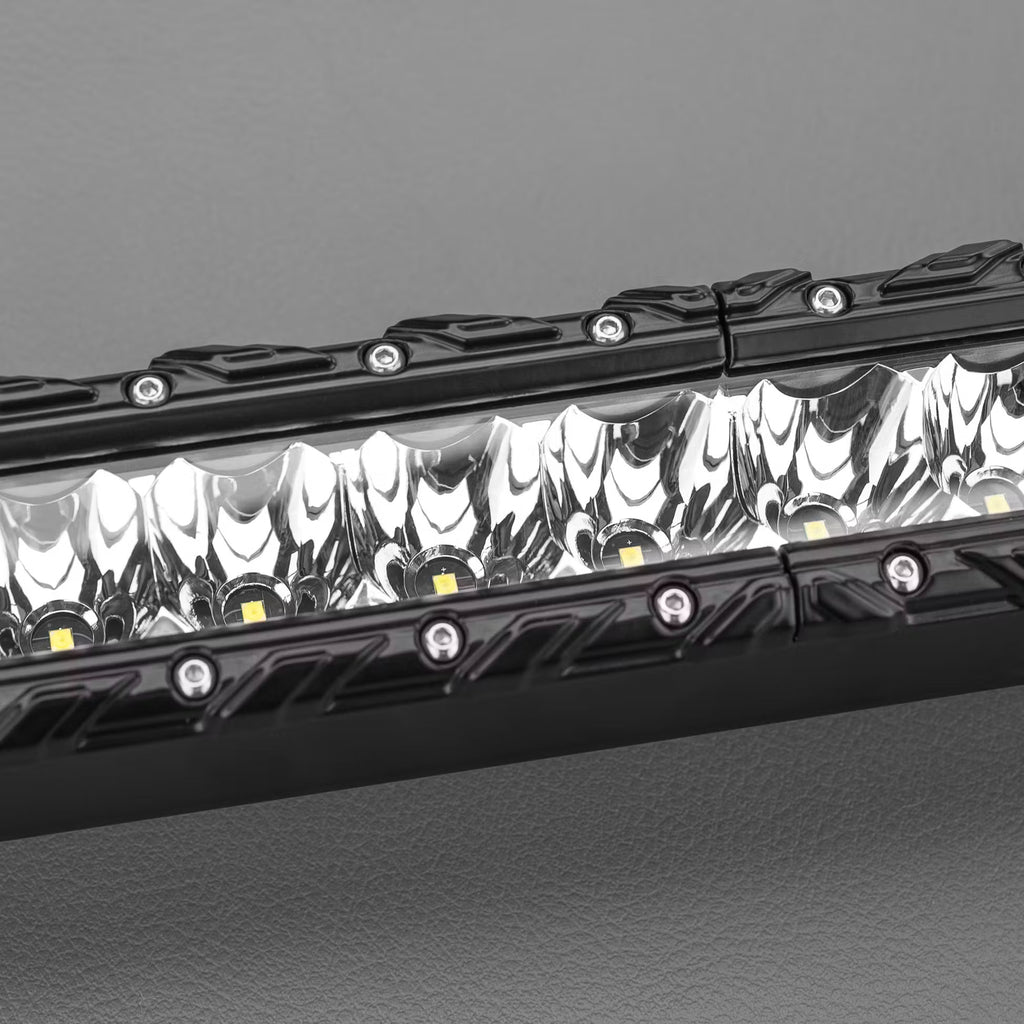

STEDI introduces the new 21.5-inch ST3K Series LED light bar. Powered by 20 of the finest OSRAM® OSLON® LEDs with a combination of 4 Flood + 12 Spot + 4 Flood reflector distribution, it creates a remarkable beam that delivers a wide beam at 50° and a spot beam at 5.8°, down to 1 lux at 493m.
Based on the highly successful ST(X)K LED and reflector platform, with a low-profile design, the STEDI ST3K series is specifically designed for applications that require maximum performance in the tightest spaces.
Technical data
| LED | 20 x Osram Oslon White |
| Effective Lumen | 4,100Lm |
| Peak Intensity | 243,200 cd |
| Operating Voltage | 10-30V DC |
| IP Rating | IP68 |
| Current Draw | 4.3A @ 13.5v |
| Color Temperature (CCT) | 5700 Kelvin |

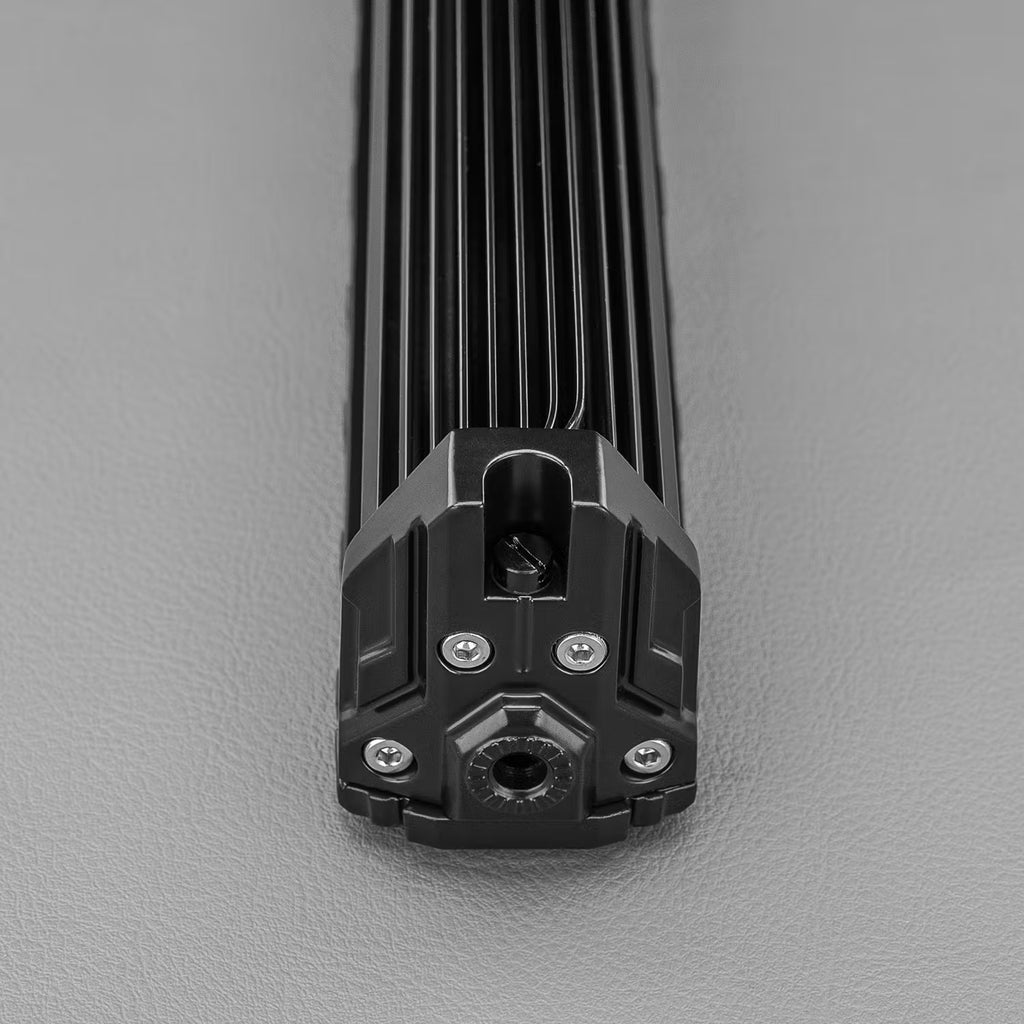

| Housing Material | Aluminum Extrusion & Cast |
| Lens | GE™ Lexan |

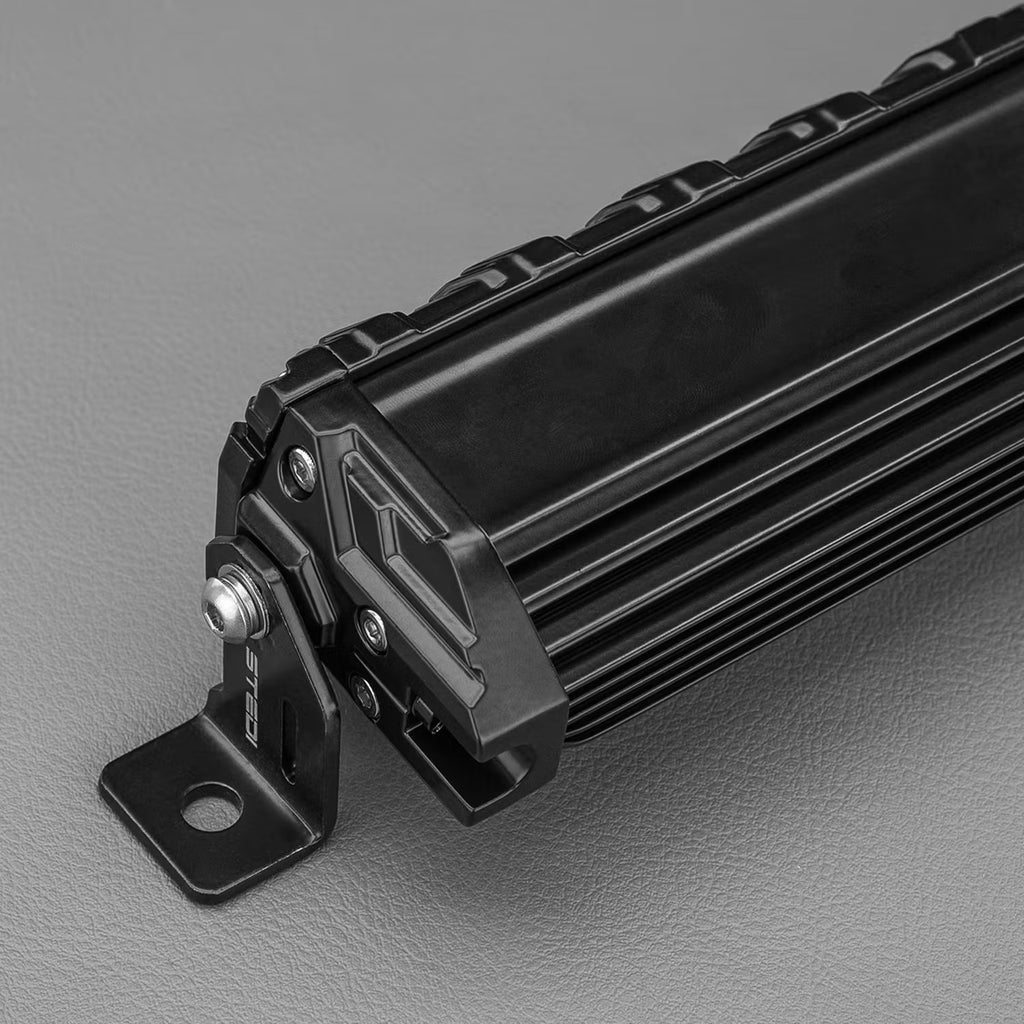

| Mounting Bracket | Powder Coated 3mm Stainess Steel |
| Bolts and fittings | 3 Series Stainless Steel |
| Beam Type | Flood Spot Combo |
| Life Span | 50,000 Hours |
| Weight | 1,855 |
| Operating Environment | -40 - +50° Celsius |
