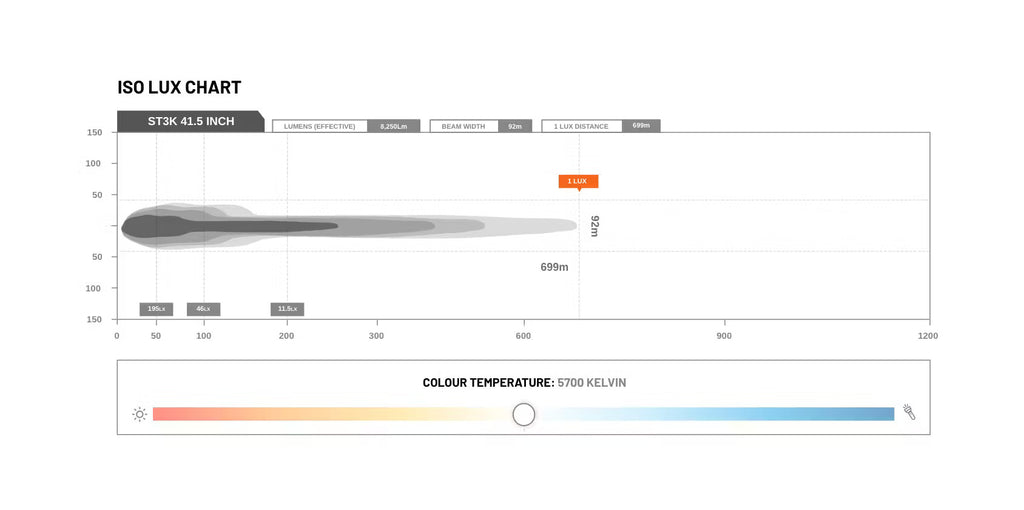

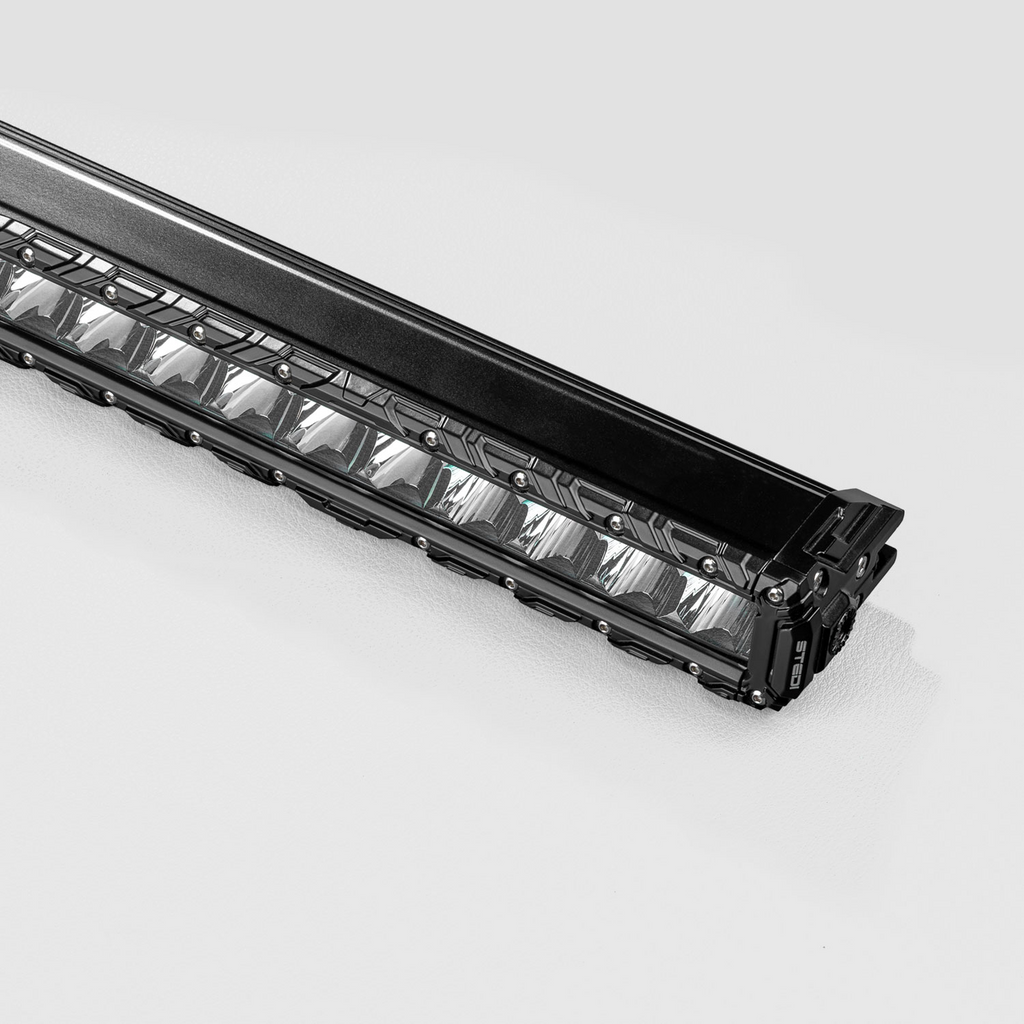

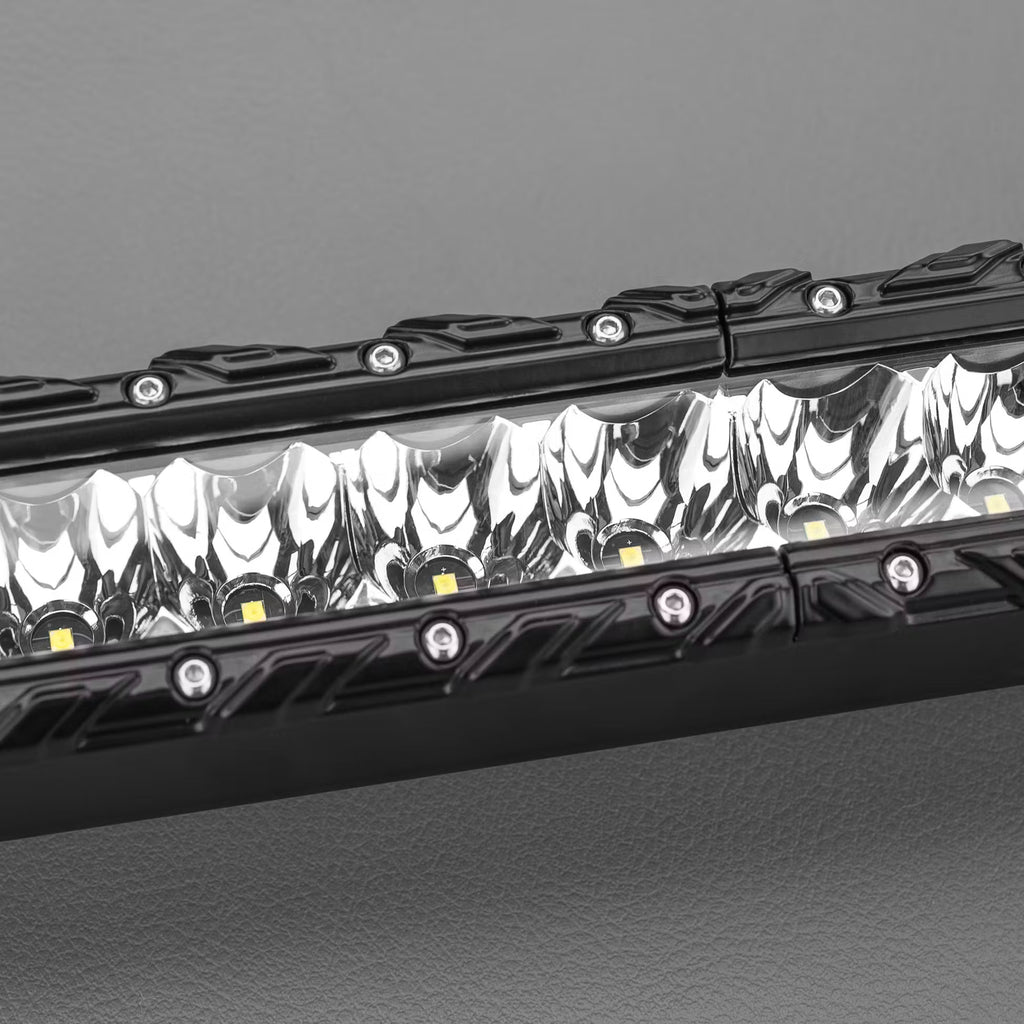

Introducing the new STEDI ST3K Series 41.5-inch LED light bar. Powered by 40 of the finest OSRAM® OSLON® LEDs, the light bar combines 8 flood + 24 spot + 8 flood reflector patterns to create a remarkable beam that delivers a wide beam at 50° and a spot beam at 5.8°, down to 1 lux at 699m.

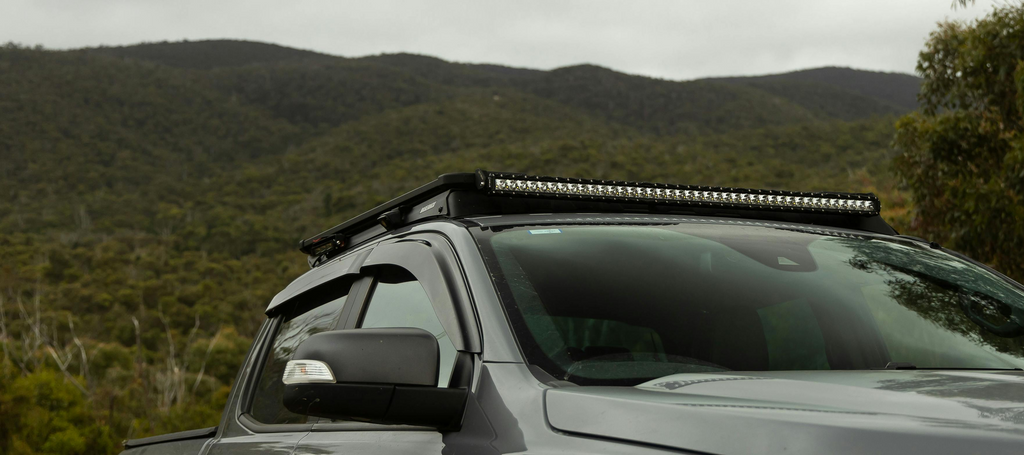

Based on the highly successful ST(X)K LED and reflector platform, but with a low-profile design, our ST3K series is specifically designed for applications that require a slim profile yet deliver maximum performance.
Technical data
| LED | 40 x Osram Oslon White |
| Effective Lumen | 8,250Lm |
| Peak Intensity (Candela) | 486,400cd |
| Operating Voltage | 10-30V DC |
| IP Rating | IP68 |
| Current Draw | 8.6 A @ 13.6v |
| Color Temperature (CCT) | 5700 Kelvin |
| Housing Material | Aluminum Extrusion & Cast |
| Lens | GE™ Lexan |

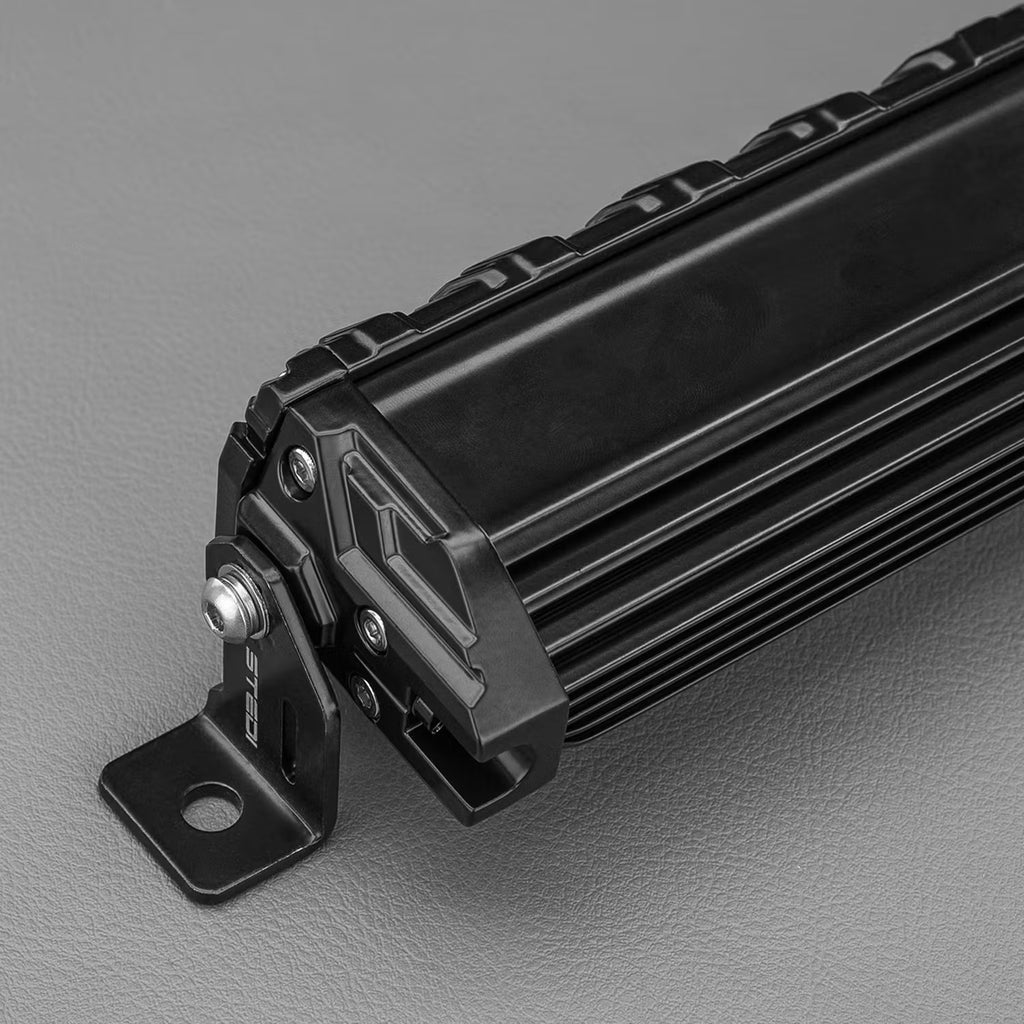

| Mounting Bracket | Powder Coated 3mm Stainess Steel |
| Bolts and fittings | 3 Series Stainless Steel |
| Beam Type | Flood Spot Combo |
| Life Span | 50,000 Hours |
| Weight | 3,475 kg |
| Operating Environment | -40 - +50° Celsius |
