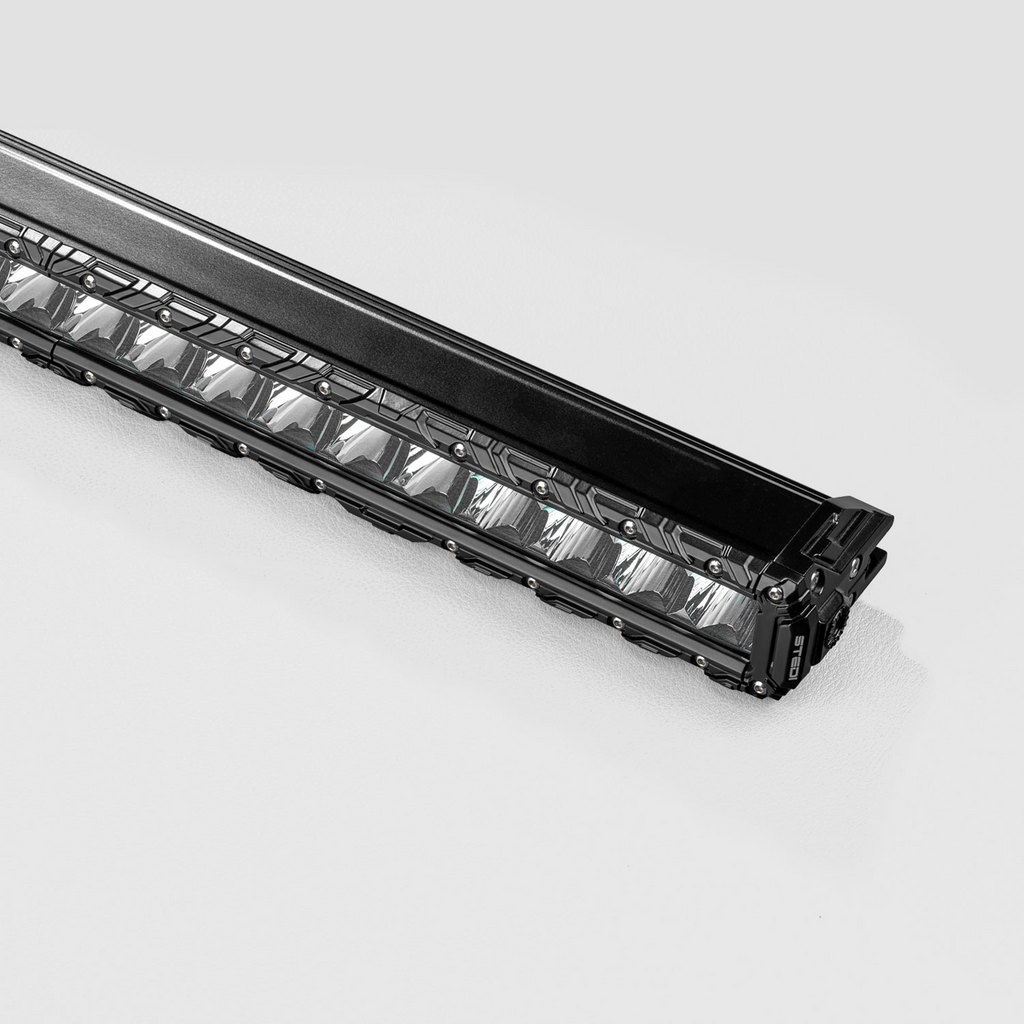

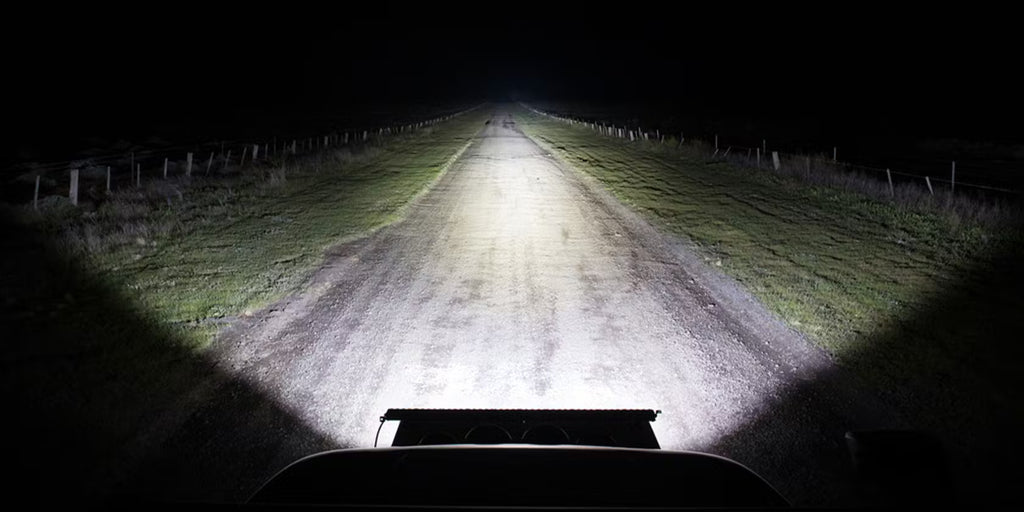

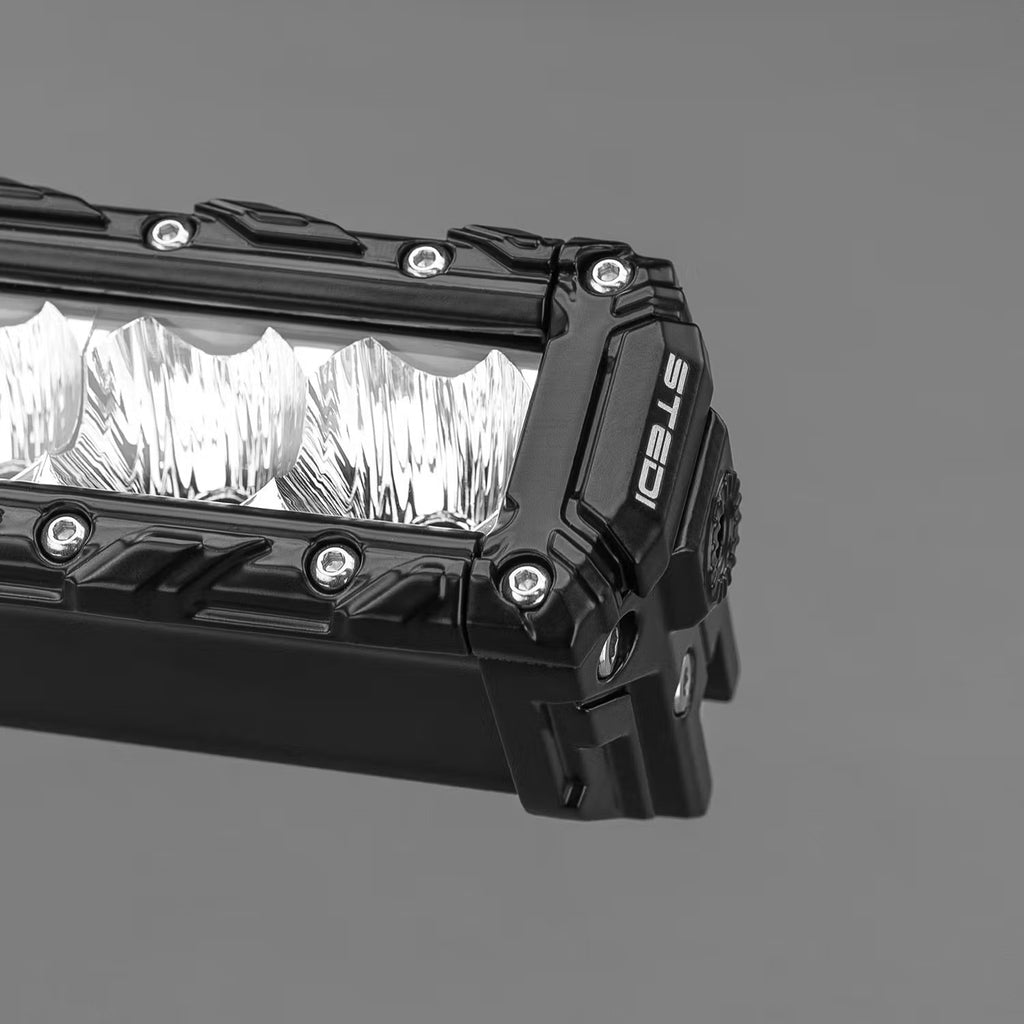

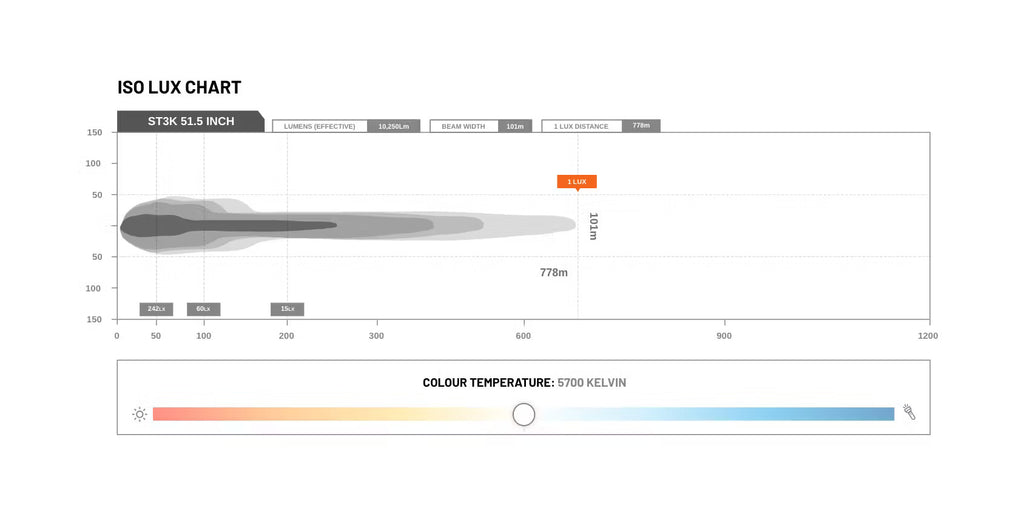

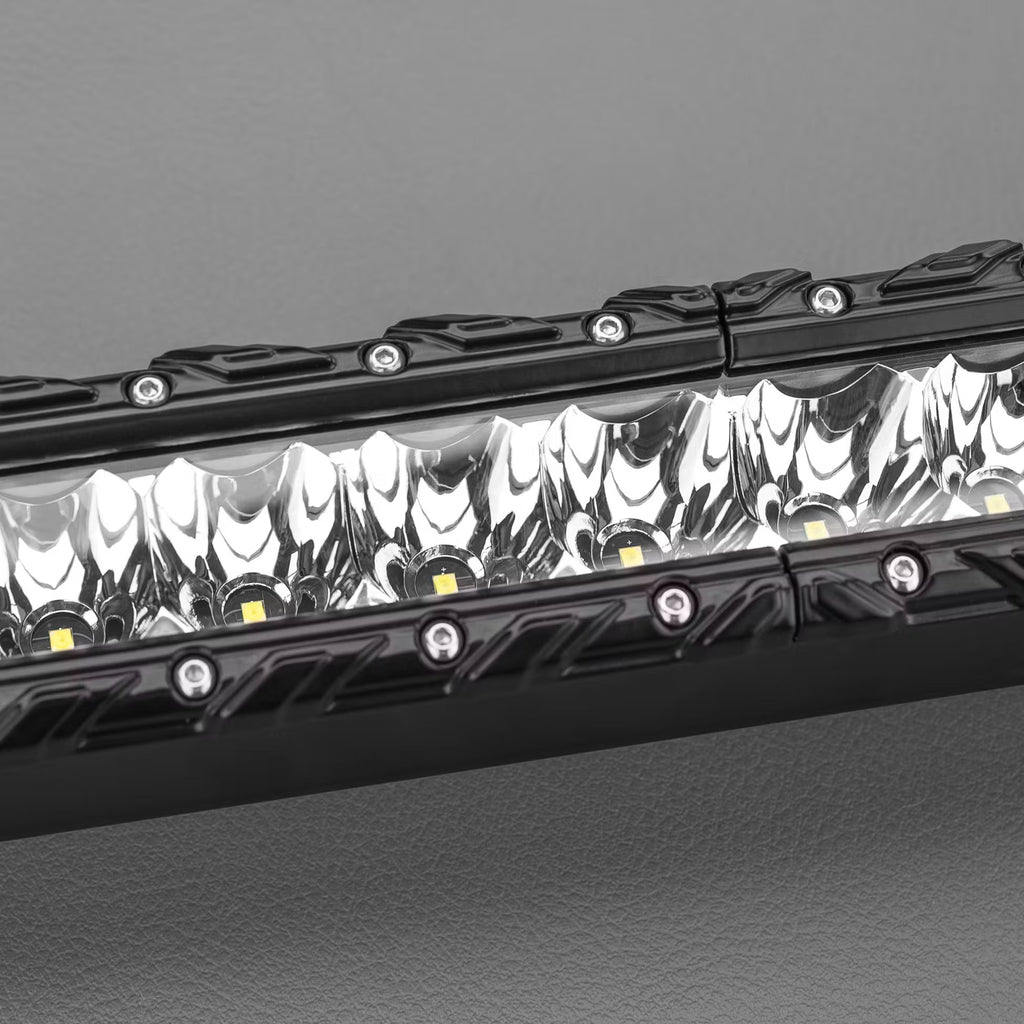

STEDI introduces its ST3K series 51.5 inch LED light bar. Operating 50 of the finest OSRAM® OSLON® LEDs with a combination of 10 Flood + 30 Spot + 10 Flood reflector distribution forms a remarkable beam that includes the wide beam at 50° and the spot beam at 5.8° up to 1 lux 778m radiates.
Based on our highly successful ST(X)K LED and reflector platform, but with a flat design. Our ST3K range is specifically designed for applications that require zero backlash while still providing maximum performance.
Technical data
| LED | 50 x Osram Oslon White |
| Effective lumens | 10,250Lm |
| Peak Intensity (Candela) | 608,000cd |
| Operating voltage | 10-30VDC |
| IP ratings | IP68 |
| Current Draw | 11.2A @ 13.6v |
| Color Temperature (CCT) | 5700 Kelvin |
| Housing material | Aluminum Extrusion & Cast |
| Lens | GE™ Lexan |

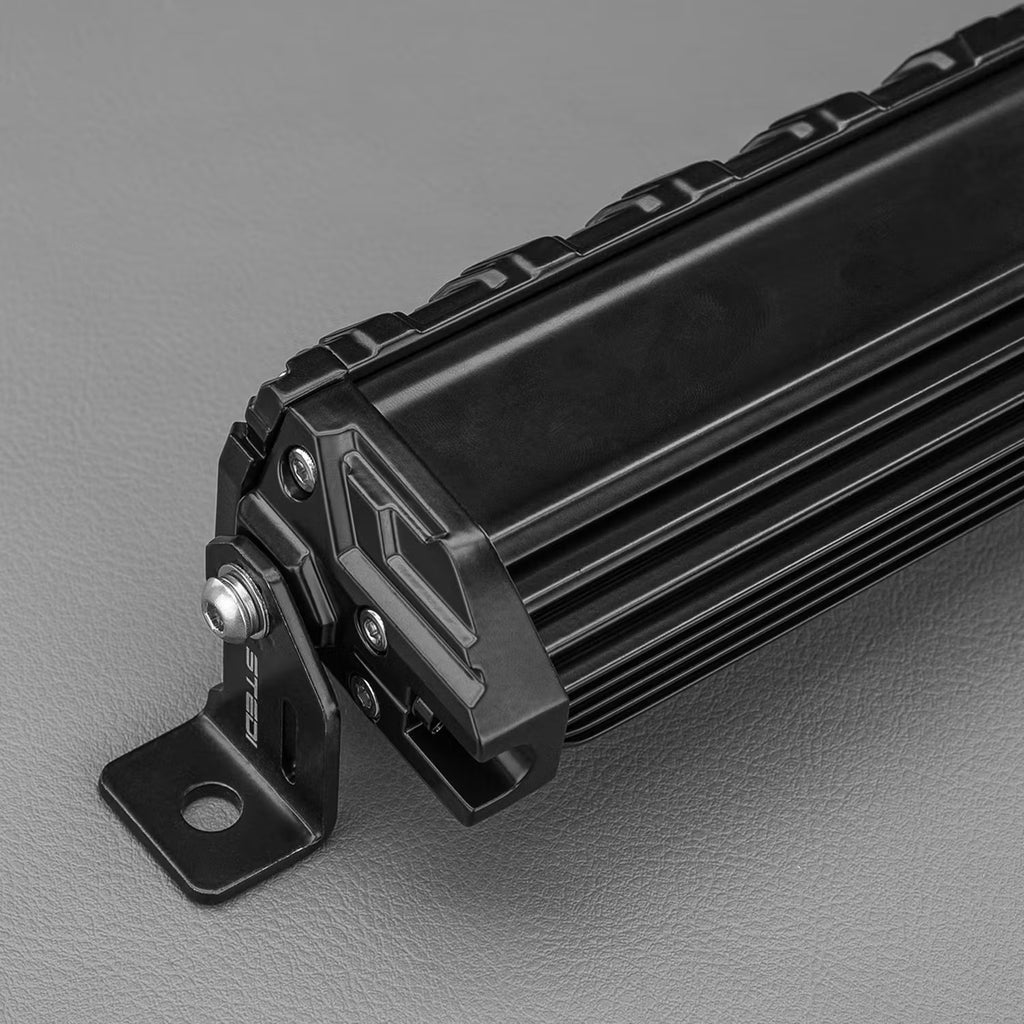

| Mounting bracket | Powder Coated 3mm Stainless Steel |
| Bolts and Fittings | 3 Series Stainless Steel |
| Beam type | Flood spot combo |
| Life span | 50,000 Hours |
| Weight | 4,250 |
| Operating environment | -40 - +50° Celsius |
