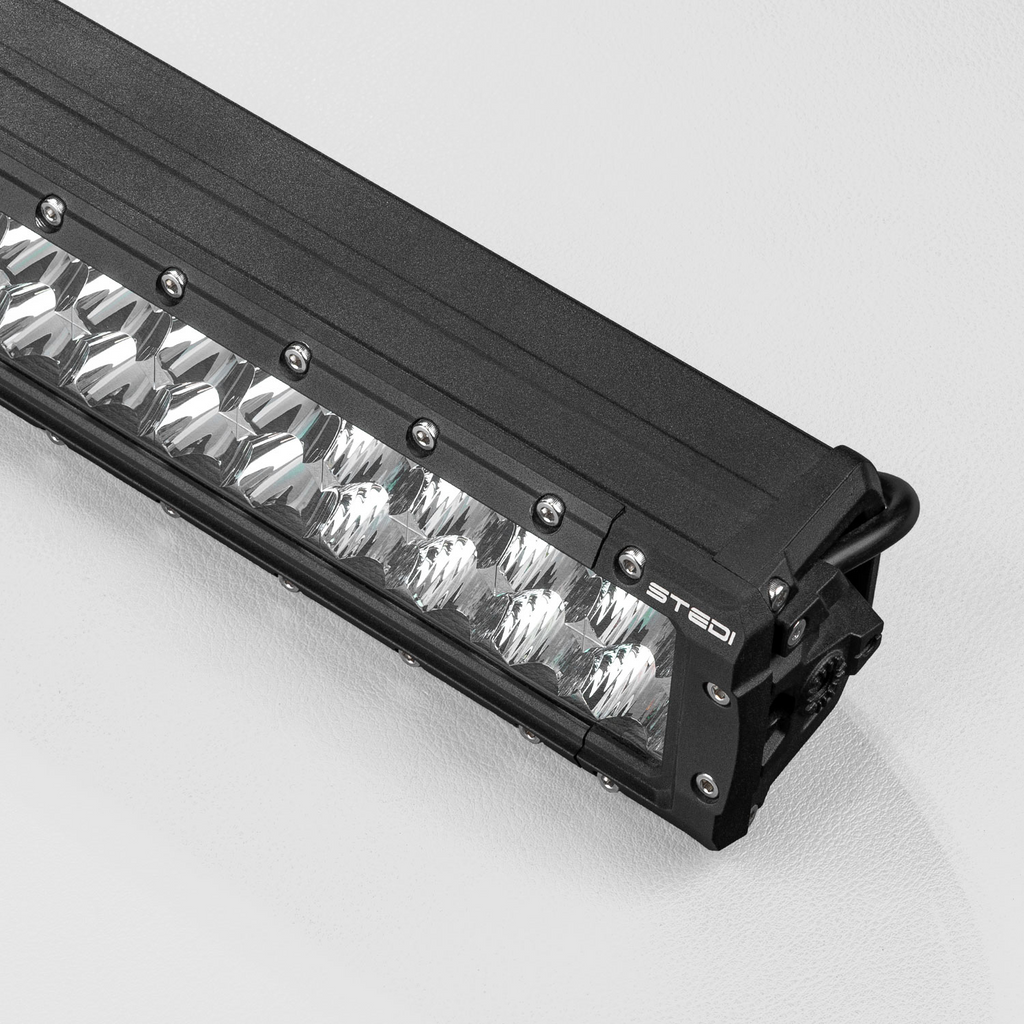

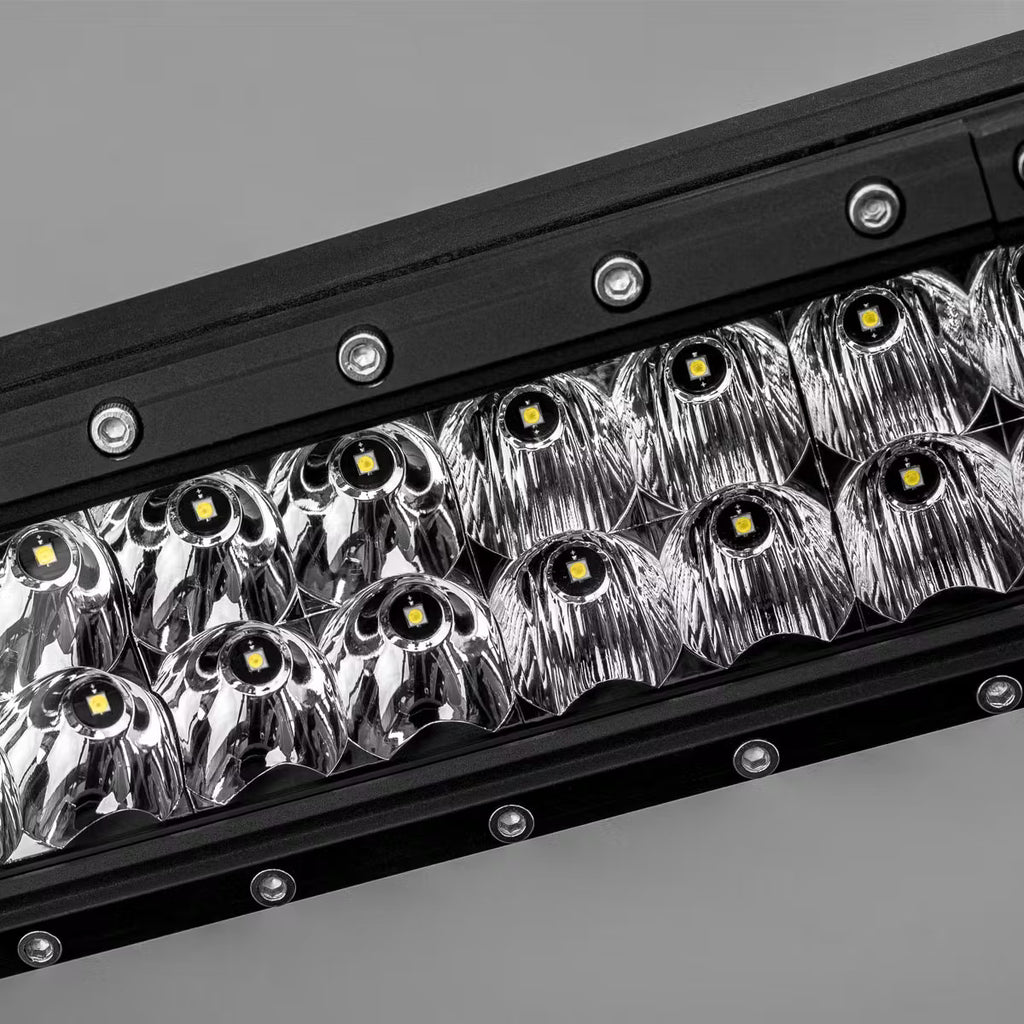

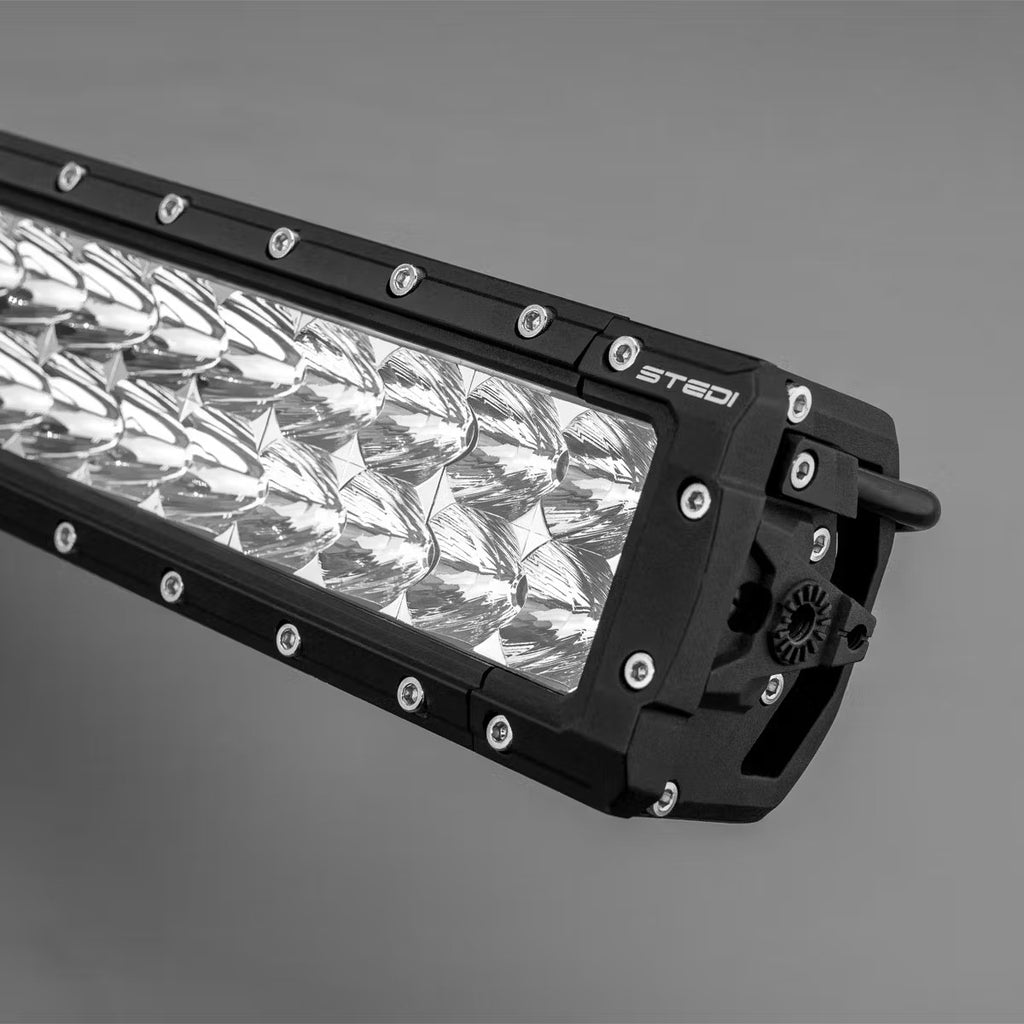

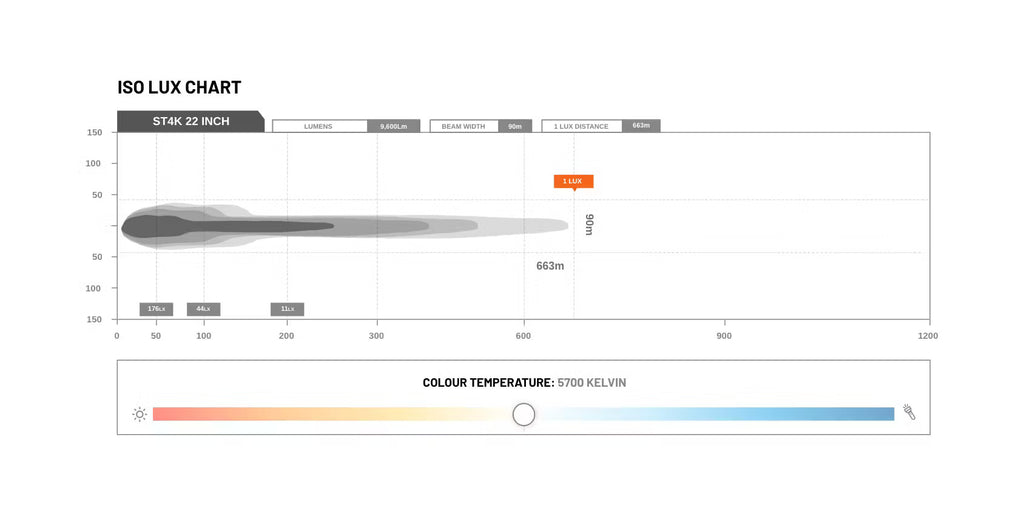

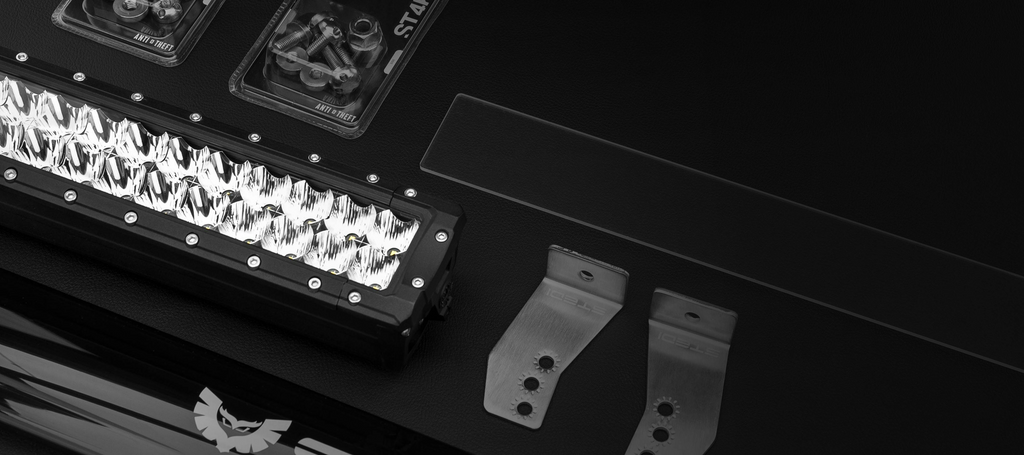

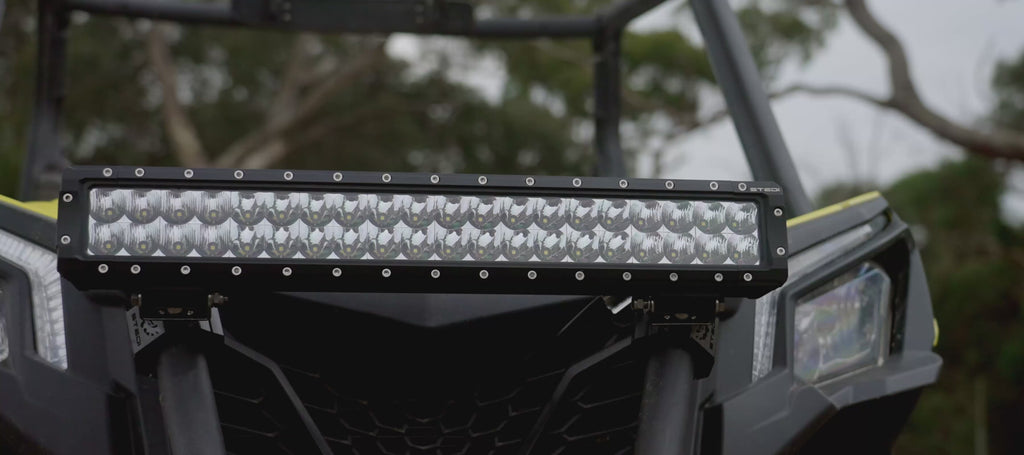

The brand new ST4K™ 22 inch LED Light Bar is the culmination of many years of experience in delivering market leading LED auxiliary lighting. Equipped with 40 OSRAM® finest OSLON® LEDs for a combination of 8 Flood + 24 Spot + 8 Flood reflector distribution, it forms a remarkable beam that includes the wide beam at 50° and the spot beam at 5.8° up to 1 lux at 663m radiates.
The ST4K™ series features our all-new three-part beam path, adopted from our flagship Type-X driving light, which outperforms headlights priced at 3x our price and offers a massive +165% increase in lux output. has proven itself compared to the outgoing ST4000!
Technical data
| LED MANUFACTURER | OSRAM (Oslon)® |
| LED COUNT | 40 |
| VOLTAGE | 12V & 24V |
| LENS MATERIAL | OPTICAL GRADE, HARD COATED LEXAN |
| LUMENS | 9,600 LUMENS |
| PEAK INTENSITY (CANDELA) | 441,600cd |

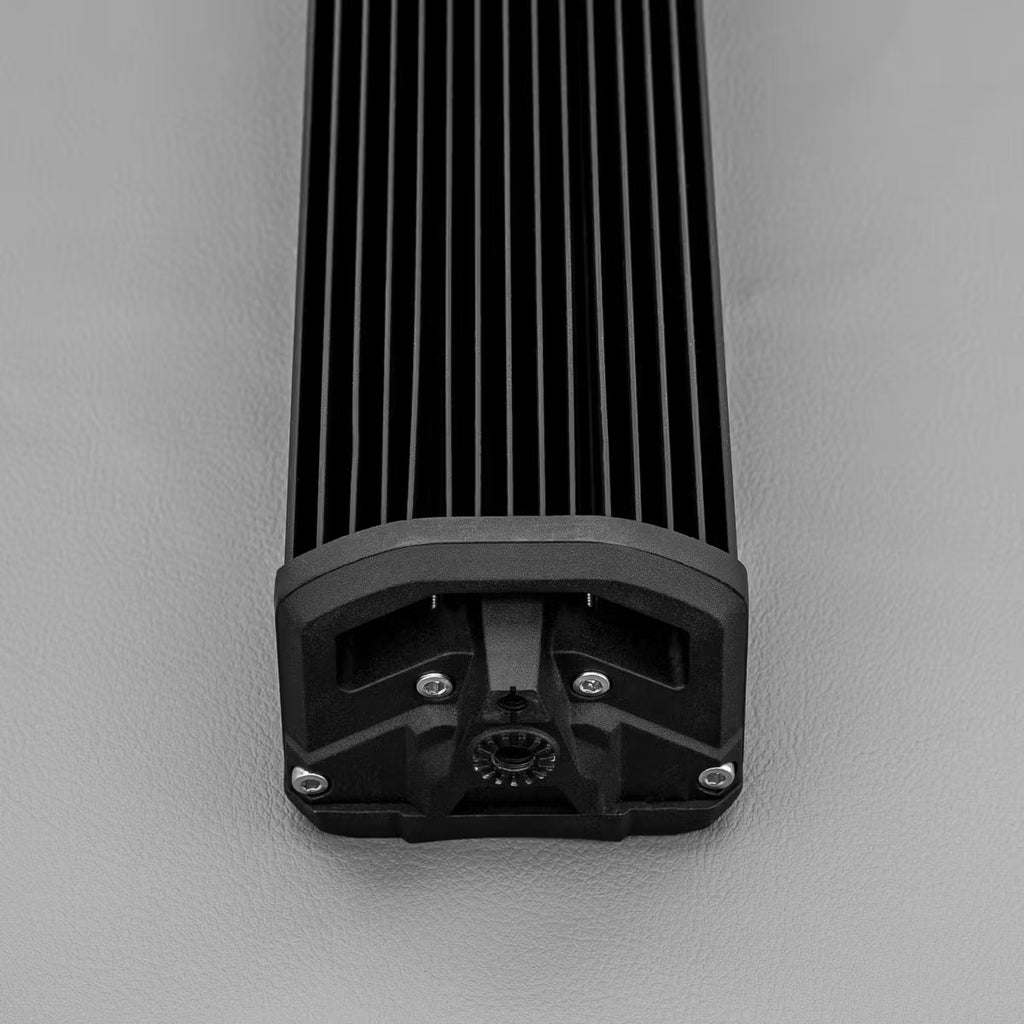

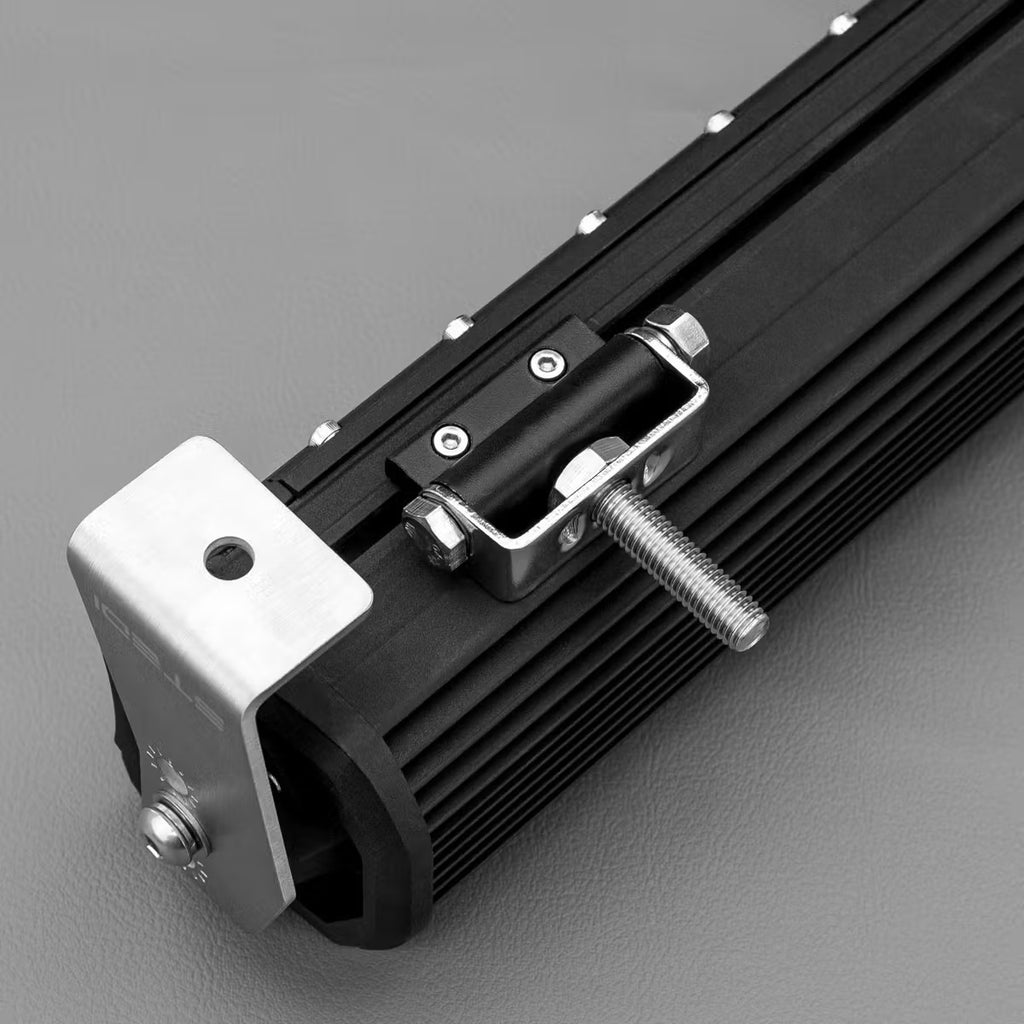

| HOUSING MATERIAL | A360.0 Cast face plate, extruded aluminum heat sink |
| AMPERS | 8.9A @ 13.6v |
| LIFESPAN | 50,000 |
| FLOOD BEAM | 50° |
| SPOT BEAM | 5.8° |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40°C to 60°C |
| WEIGHT | 2,880kg |
