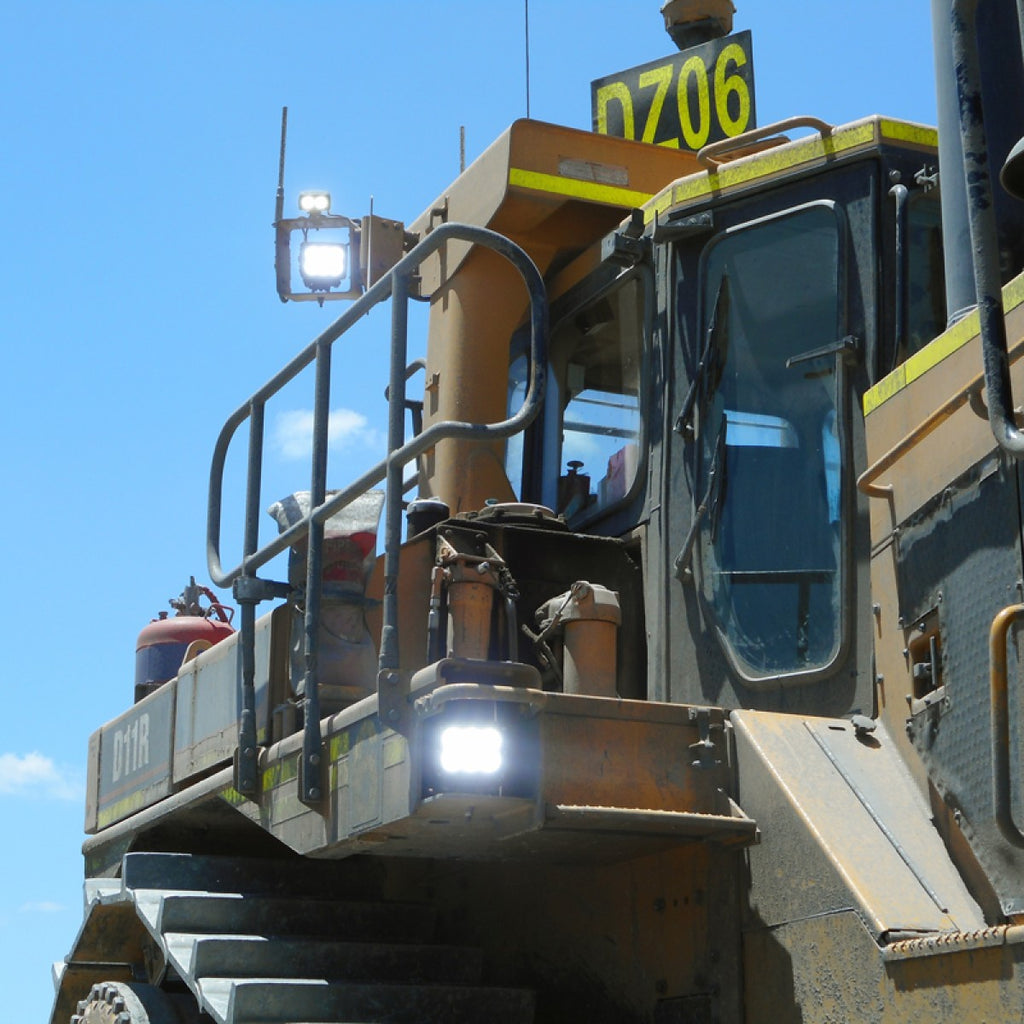

The STEDI ST12240-60W is oversized to withstand the 24/7 stress required in mining and heavy machinery applications.
PROTECTED AGAINST:
- Reverse polarity
- Shockproof, waterproof and UV protected
- RFI/EMC interference | No impact on existing electronic systems.
- Voltage and current surges
CHARACTERISTICS
- Dynamic thermal management controller | Designed to operate 24 hours a day, 7 days a week.
- ADC12 die-cast aluminum heatsink
- Silicone power cable
- Anodized powder coating | Abrasion resistant
- Lexan Polycarbonate Front Cover | Unbreakable
- Environmentally friendly Deutsch DT-2 connectors
- Vibration and shock absorbing mount.
TECHNICAL DATA
| POWER | 60 watts |
| LED | 6 x 10w CREE XM-L2 |
| CURRENT DRAW | 5.3A @ 12v, 2.3A @ 24v |
| VOLTAGE | 9 to 36v |
| LUMENS | 5400LM |
| INGRESS PROTECTION | IP68 |
| COLOR TEMPERATURE | 6000K |
| OPERATING TEMPERATURE | -40°C - 60°C |
| LIFESPAN | 50,000hrs |
| LENS | LEXAN Optical PC |
| WEIGHT | 2,070kg |
| BEAM | 45° Flood |
| PEAK BEAM DISTANCE @ 1 LUX | 132m |
| CERTIFICATES | CE |
