Please note: This mounting kit can only be used with WARN ZEON 8, 10, 10 Platinum, as well as VR EVO & Runva 11 series winches.

Incl. parts certificate

So-called "Low Mount" winches such as WARN M8000 do not fit!

without winch
The mounting kits are developed by us individually for each vehicle type. Of course, attention is paid to the off-road characteristics, so that, for example, the approach angle is not too severely affected, while still ensuring ease of use. However, we not only pay attention to driving impairment, but also to all legal regulations that must be observed.

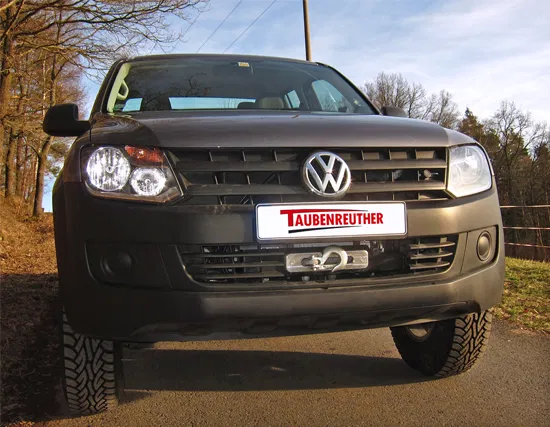

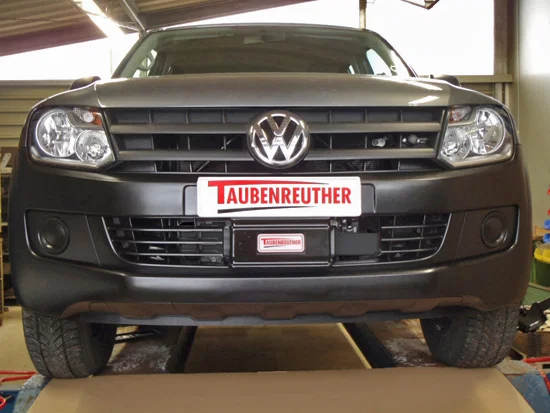

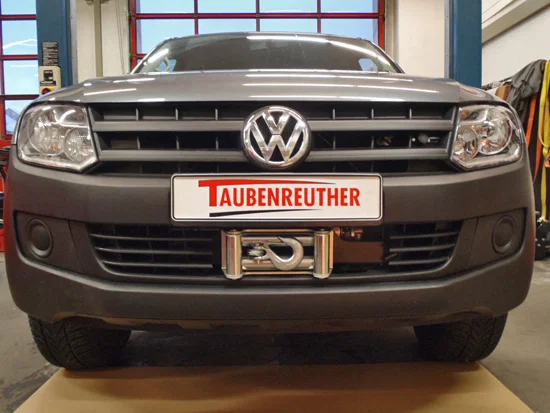

With so-called hidden mounting kits for winches, the winches are integrated as far as possible into the original bumper. This hidden winch mounting has the following advantage: The winch always remains on the vehicle and is ready for use at any time. Even with angled pulling directions, higher pulling forces can be achieved than with flexible systems. Hidden mounting kits are available for many off-road vehicles from e.g. Jeep, Toyota, Nissan, Mitsubishi, Suzuki and many more. And pickups of all brands, such as Ford, Isuzu, or VW.

Attention:
The extension rod kit and free spool lever are not included with these mounting kits, as the type of winch used must be known for this.

For WARN winches, we offer the following free spool levers and the extension rod kit for them:

• 16-05070 Extension rod kit 600mm for free spool lever

• 16-0509 Free spool lever for Zeon winches

• 16-0510 Free spool lever for Tabor 8 winches

• 16-0511 Free spool lever for 9,5XP, XDC, XD9000, M8000, Tabor 10 & 12


Unlike in the instructions, items 16-0302 Socket holder and 1-90395 Socket extension are not included in this mounting kit.

You can order these two items separately:

• 16-0302 Socket holder

• 1-90395 Socket extension or 1-90394 for V8500 winch
