BRIDGING THE GAP.

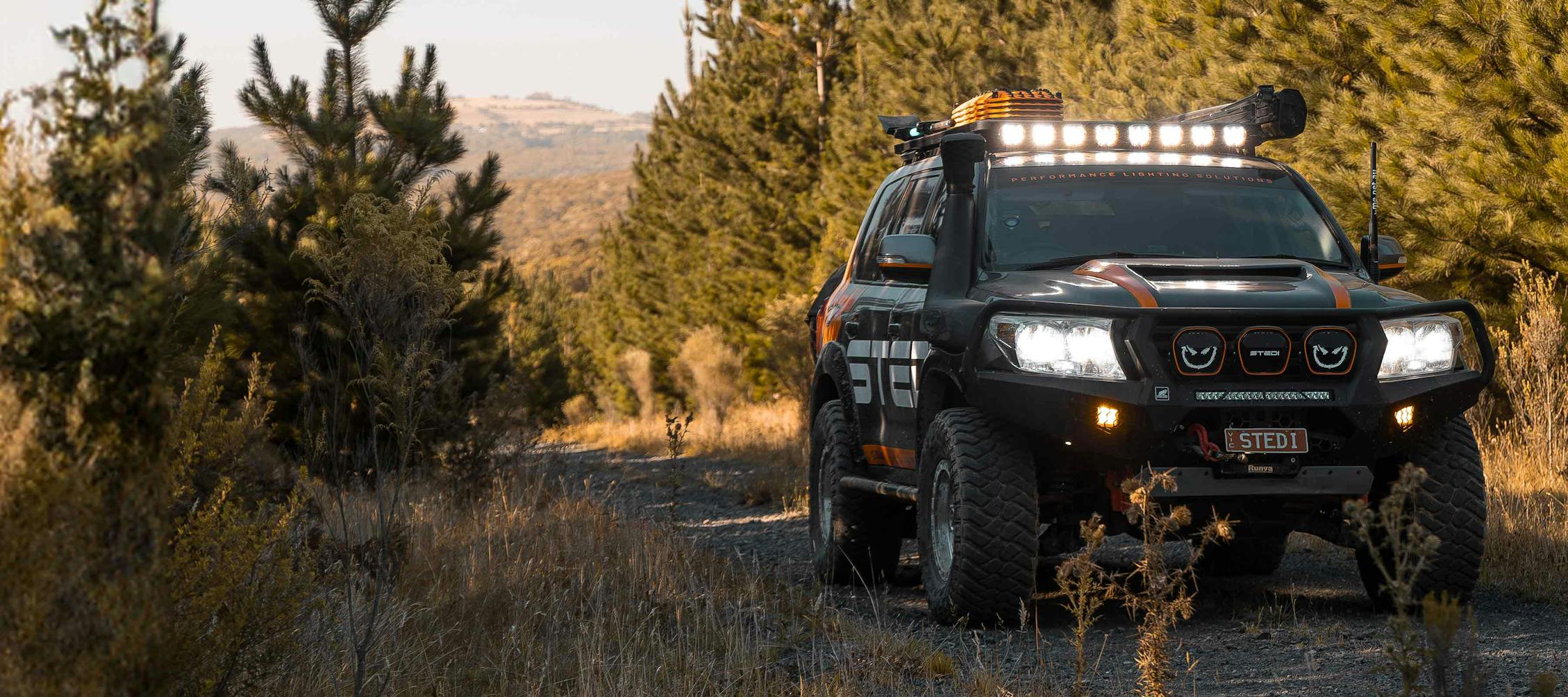

The 9 way connector allows for the simplified process of wiring multiple LED lights to the top of a vehicle to achieve the pre-runner look, or any other lighting combination you desire.
PLUG & PLAY.
The 9-Way DT cable provides a clean and simple solution that is compatible with any LED light that has a DT connector.
CLEAN AND EASY SOLUTION.
For a total of 9 lights with a maximum current draw of 25 amps. Our goal is to create a stress-free installation process that eliminates the need for multiple wiring accessories or a custom wiring harness.
Please note: this is not a standalone wiring harness - just an adapter, you will also need a STEDI™ Smart wiring harness.

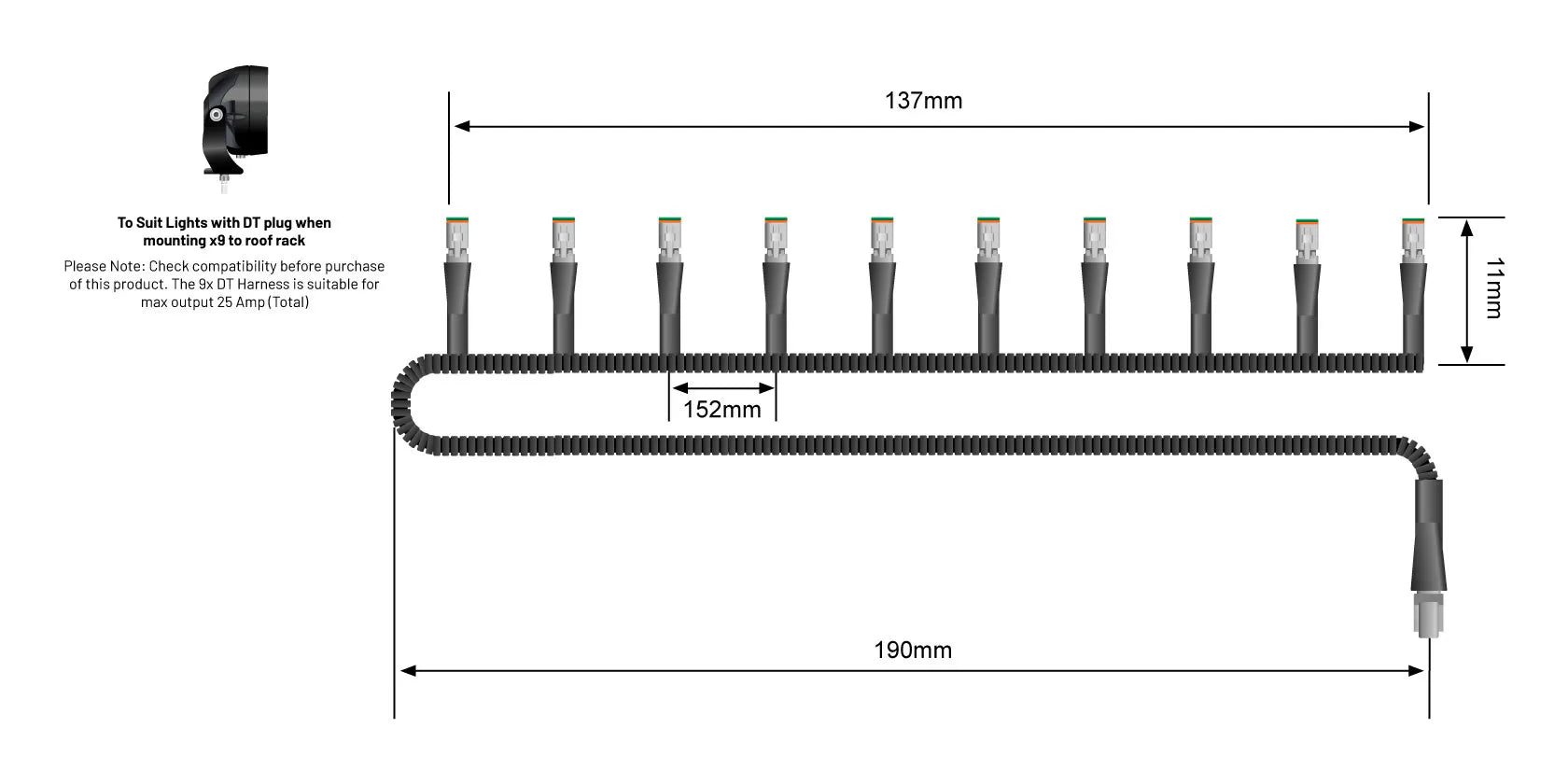

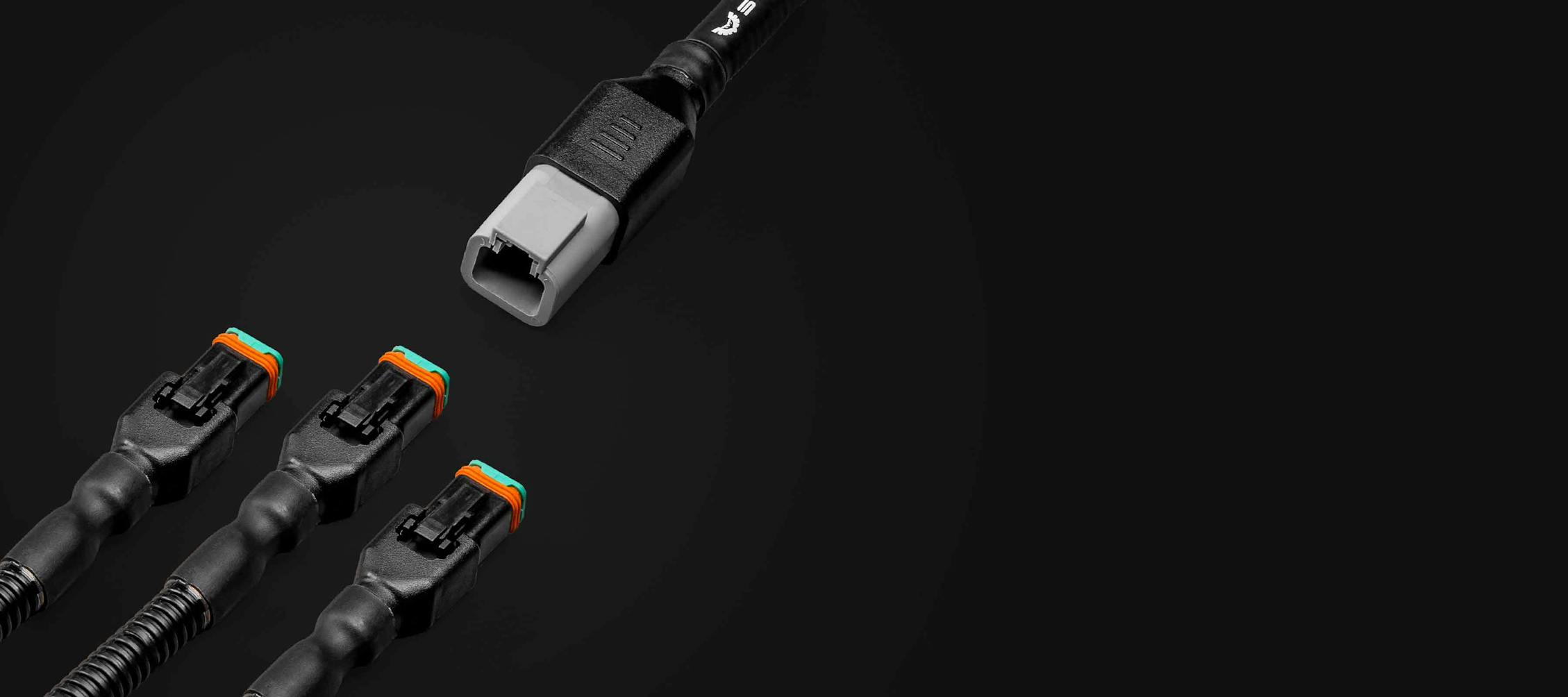

The main connection is a DT-P connector, and the nine individual ends are each DT. Not all individual cables need to be connected for full functionality.
TECHNICAL DATA
| POWER DRAW | 25 Amp Rated |
| CONNECTOR TYPE | Waterproof DT x9 |
| CABLE LENGTH | 3.08 meters |
| INPUT | DT-P |
Attention: Headlights and brackets are not part of the offer!
