A Master of Everything.
A jack of all trades, a master of everything – the STEDI™ DRL Universal Fog Light is packed with numerous features. Benefit from the penetrating power of an advanced LED light beam that cuts through even the densest fog, as well as an integrated daytime running light (DRL), indicator, and parking light – all in one powerful package.
Australian Design, Universal Fit.
Developed in Melbourne, built to conquer the world – the STEDI™ DRL Universal LED Fog Light set features a universal light unit with a specially designed bracket that ensures a seamless OEM-style fit for ARB Deluxe bull bars.
ADR Compliant.
STEDI's universal DRL LED fog lights are designed to replace your factory fog lights with lights offering a brighter beam and better penetration in fog, thereby improving visibility. STEDI™ ensures that each light is certified as ADR compliant, giving you full confidence both on and off-road.
The Essentials
in a Nutshell.
The STEDI DRL LED fog lights with integrated indicator and parking light functions are a high-quality premium solution for anyone seeking improved fog light performance with an OEM-like fit and finish.
The projector lens optics provide a very flat and extremely wide light pattern that complies with DOT and ECE standards for road use.
The STEDI™ universal fog lights with daytime running lights come with mounting brackets that allow them to be effortlessly bolted to ARB Deluxe bull bars, making installation a breeze.
Please note:
Due to the manufacturing process, slight condensation may occur during initial operation. This is normal and should resolve itself within the first week as the lights heat up and any moisture escapes through the vent in the lights. If you have any concerns or if the problem persists for an extended period, please contact us at enquires@stedi.com.au for further assistance.
Tech Specs

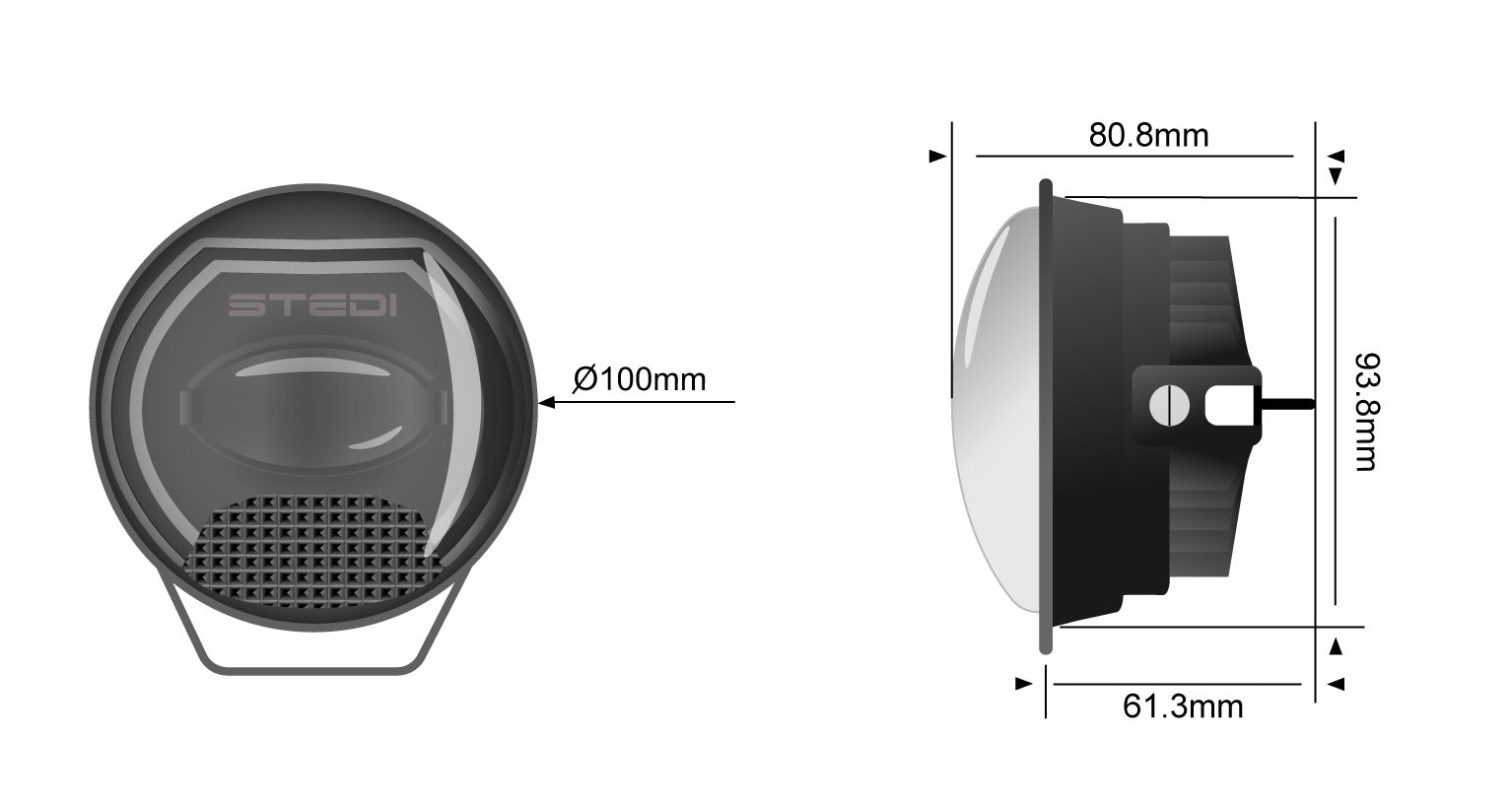

| Length (mm) | 129 |
| Width (mm) | 100 |
| Height (mm) | 83.8 |
| Weight (kg) | 1.06 |
| LED | High Intensity W1860TM2 |

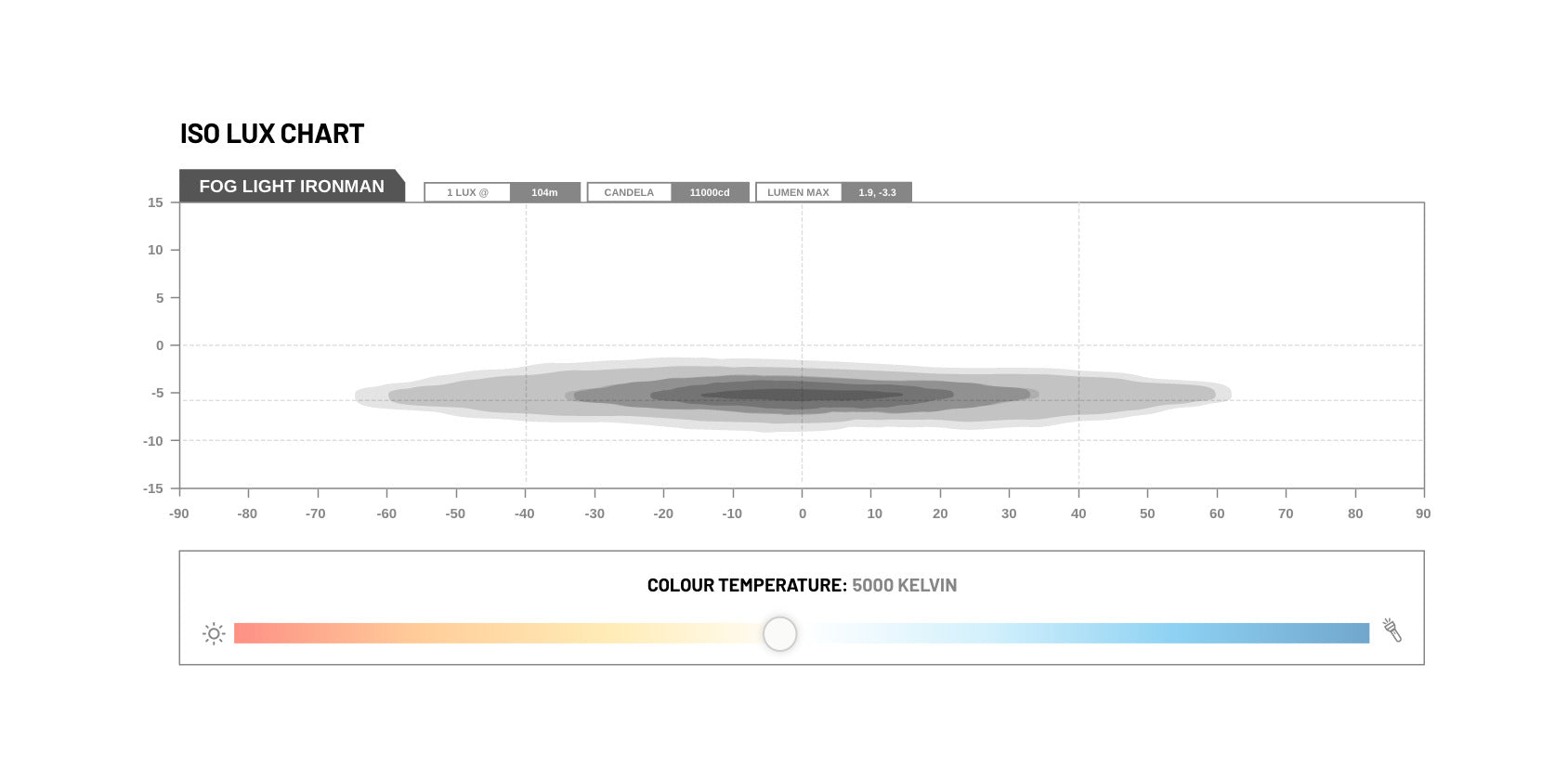

| Beam Pattern | Fog Beam |
| Tested Lumen (Single) | 730 |
| Tested Lumen (Pair) | 1460 |
| Ingress Protection | IP68 |
| Colour Temperature | 5000K |
| 1 LUX (Meters) | 104 |
| Candela | 11000 |
| Amp Draw | 1.35@13.2V |
| Power Draw | 17.8W@13.2V |
| Colour Temp (CCT) | 5000K |
| Voltage Compatibility | 10-36V |
| Operating Temperature | |
| Material/finishing | Cast Aluminium |
| Beam Pattern | DRL |
| Colour Temperature | White |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Position List (Parker) |
| Colour Temperature | White |
| Amp Draw | 0.17@13.2V |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Indicator (Turn Signal) |
| Colour Temperature | Amber |
| Amp Draw | 1.3@13.2V |
| Voltage Compatibility | 10-36V |

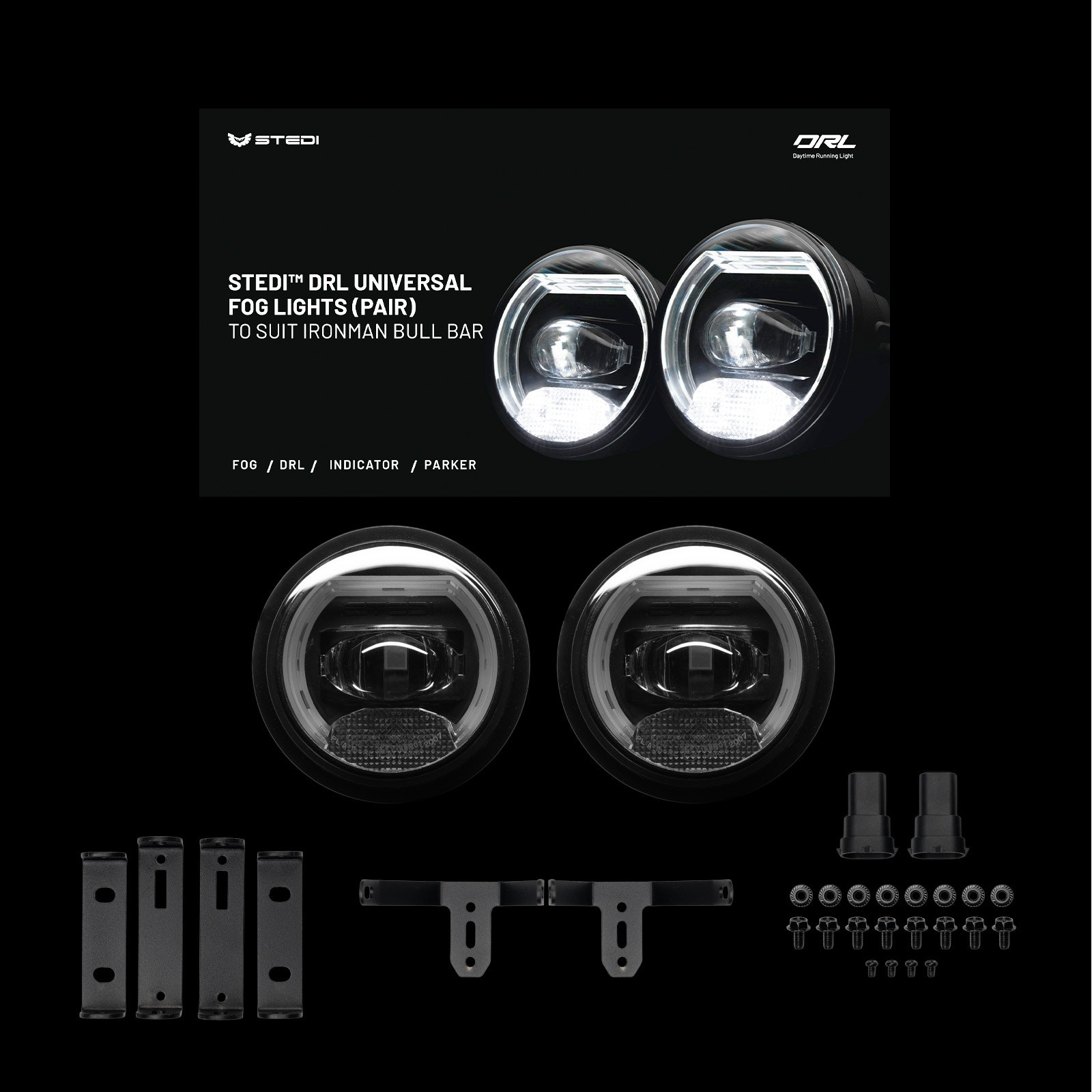

Scope of Delivery
- 2 x Fog lights with mounted bracket
- Mounting hardware (4 x M4 x 12 mm Phillips pan head screws made of 316 stainless steel)
- 2 x H11 connectors
