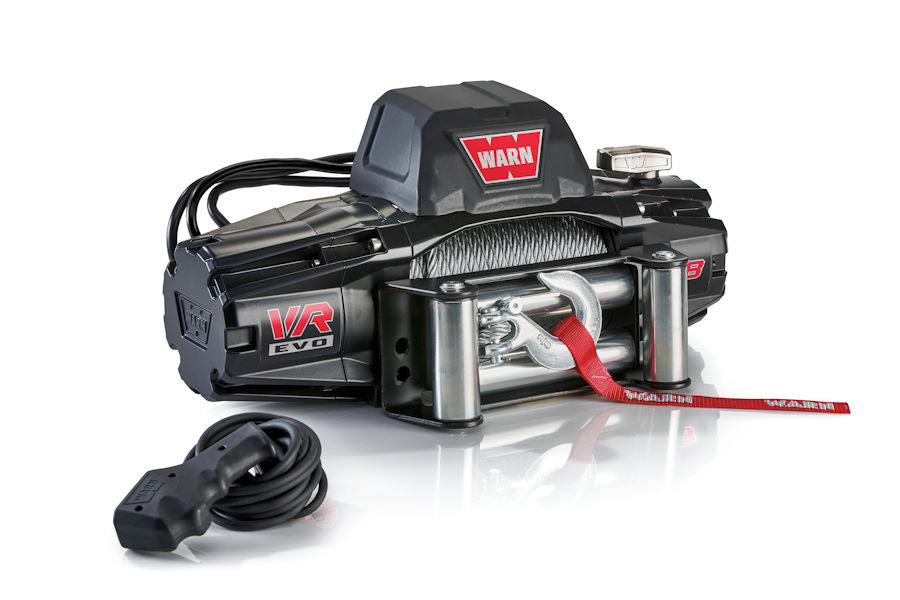

WARN VR Evo 8, 12V 3,629KG pulling force including steel cable

The “VR EVO” winch from WARN replaces the “TABOR” series, which has been popular for years, and boasts many innovations compared to the previous model.

Characteristics:

• IP68 tested

• Faster rope speed under load with lower amp consumption*

• Higher pulling force per layer of rope *

• 2 in 1 cable & radio remote control for full control of all work

• Centrally routed cable exit in the middle of the contactor

• Reinforced connection plate for greater stability

• Reliable contactor control

• Modern & functional design
  * compared to the Tabor series

Info battery:

• Type group: Non-rechargeable battery

• Chemical system: lithium

Technical data:

• Model: WARN VR EVO 8

• Voltage: 12 volts

• Pulling force: 3629 kg

• Control: contactor

• Radio remote control: yes

• Cable remote control: yes, 3.7 m

• Gearbox: 3-stage planetary gearbox.

• Translation:-

• Brake: spring auto.

• Drum dimensions: 6.4 x 22 cm

• Weight: 36kg

• Rope material: steel

• Rope length: 27.4m x 8mm

• Battery cable: 1.83 m

• Rope freewheel: manual

• Cable window: roller cable window

• Min. cold start current battery: - CCA

• Towing hook: yes

• Mounting screws: yes

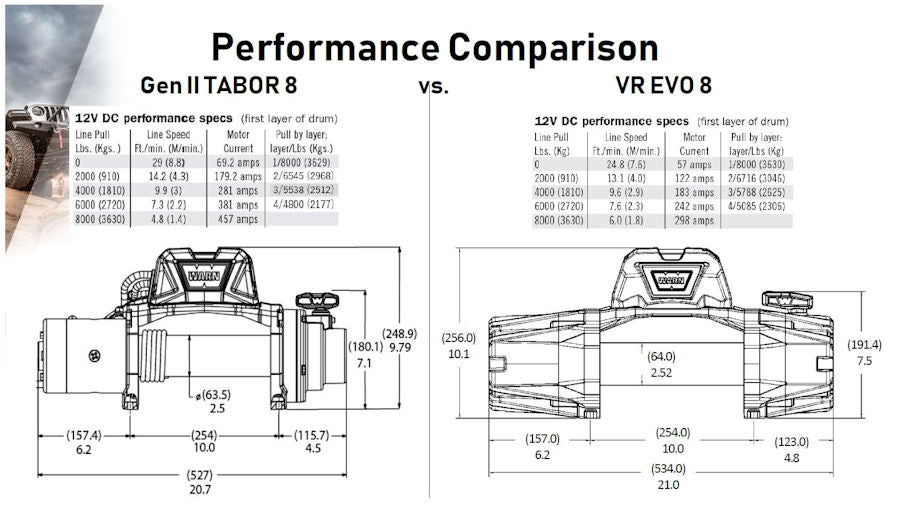

• Dimensions (LxDxH): 534 x 160 x 256 mm

• Hole pattern: 254 x 114.3 mm
