Product Overview

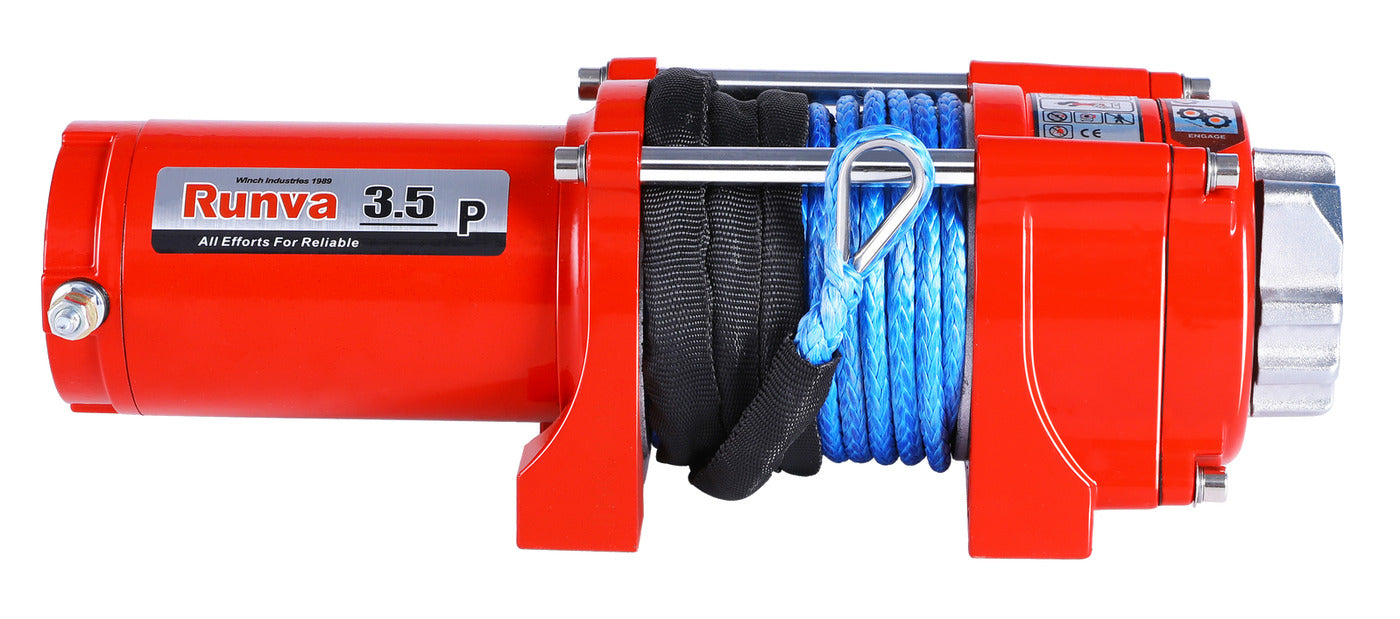

The Runva 3.5P is perfect for ATVs (Quads), trailers, and MUCH more. This winch is small, compact, and very light, boasting 3,500lb of pulling power on the first layer of rope.
The Runva 3.5P features our patented cam action clutch and automatic self-locking system. With its full steel gears, this winch is tough and reliable. Optional wireless remote control is also available for greater freedom and flexibility when winching. Available in 12V or 24V with steel cable or synthetic rope.
If you need a small, compact winch for light-duty winching, the 3.5P is for you.
Tech Specs
RATED LINE PULL 3,500 LB (1,588 KG)
MOTOR (12V) 2.4 KW/3.2 HP; (24V) 2.9 KW/3.9 HP
GEARING FULL STEEL, PLANETARY
GEAR RATIO 170:1
CLUTCH TYPE PATENTED CAM ACTION CLUTCH
CLUTCH HANDLE POSITION GEARBOX SIDE
BRAKE AUTOMATIC LOAD HOLDING
ROPE TYPE SYNTHETIC ROPE
ROPE SIZE 5 MM X 15 M
DRUM SIZE 37 MM X 80 MM
MOUNTING BOLT PATTERN 124 MM X 76 MM (4 X M8 BOLTS)
OVERALL DIMENSIONS 335 MM X 116 MM X 112 MM
REMOTE CONTROL HAND HELD REMOTE AND HANDLE BAR ROCKER SWITCH (WIRELESS OPTIONAL)
BATTERY LEADS 2X 2.3 M HEAVY DUTY LEADS
FINISH RED POWDER COATED
WARRANTY 5 YEAR LIMITED ELECTRICAL WARRANTY AND LIFETIME MECHANICAL WARRANTY
PART NUMBER 35P12VD
SHIPPING WEIGHT 10.70 KG
SHIPPING WIDTH 0.265 M
SHIPPING HEIGHT 0.201 M
SHIPPING LENGTH 0.407 M
