- 4,500 LB PULLING FORCE
- SMALL COMPACT WINCHES
- COMPATIBLE WITH WIRELESS REMOTE CONTROL
- AVAILABLE IN 12V AND 24V
- STEEL CABLE AVAILABLE AS AN OPTION
Product overview

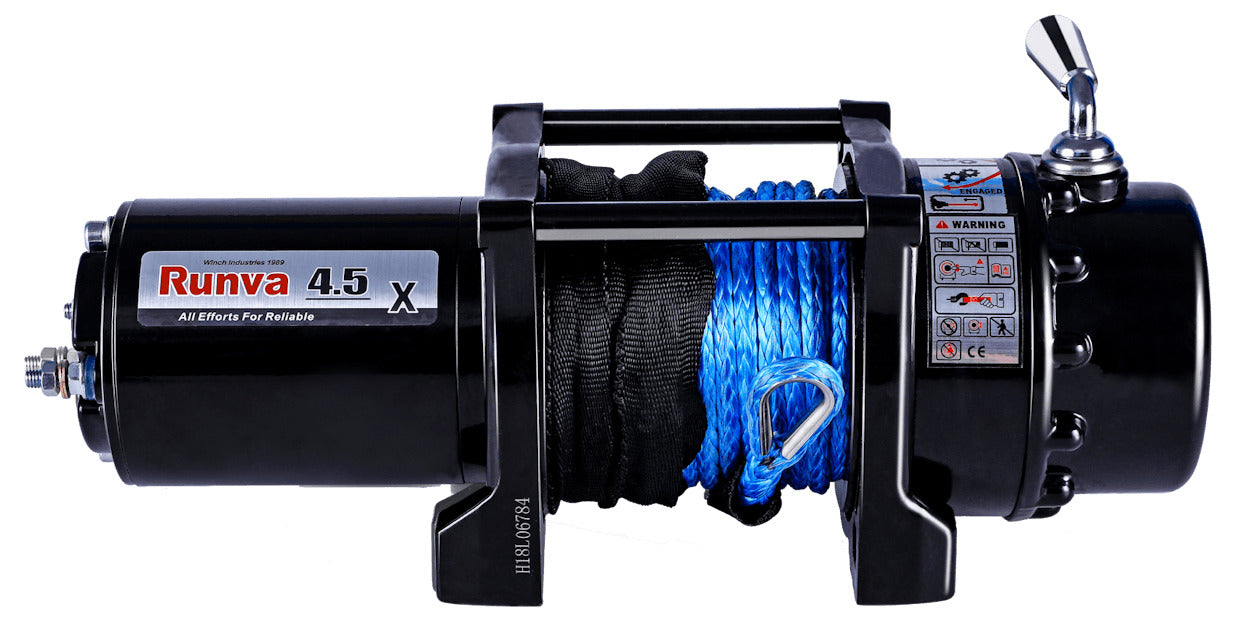

The Runva 4.5X is perfectly suited for a wide range of applications, including trailers such as cars, dump trucks, boats, and much more. This winch is small, compact, lightweight, and portable thanks to its standard 2-inch trailer hitch system. With a massive 4,500 lb pulling capacity on the first layer of rope, this winch offers you numerous possibilities.
All-steel three-stage planetary gearbox for an extremely powerful and reliable winch. Automatic braking is enabled by the screw-cone brake system.
A wireless remote control is also available as an option, offering you greater freedom and flexibility when winching. Available in 12V or 24V with steel or synthetic rope. (For use with UTVs – SIDEXSIDE, we recommend the Runva EWT4500)
Technical data
RATED TOWING FORCE 4,500 LB (2,041 KG)
MOTOR (12 V) 2.4 kW/3.2 HP; (24V) 2.9kW/3.9HP
Gearbox made entirely of steel, planetary gearbox
TRANSLATION RATIO 172:1
CLUTCH TYPE: SLIDE RING CLUTCH
Position of the clutch handguard on top of the gearbox
AUTOMATIC LOAD HOLD BRAKE
ROPE TYPE SYNTHETIC ROPE
Rope size 6 mm x 15 m
Drum size 45 mm x 93 mm
Mounting bolt pattern 129 mm x 96 mm (4 x M8 bolts)
Overall dimensions 378mm x 126mm x 165mm
Remote control , handheld remote control and handlebar rocker switch (WIRELESS OPTIONAL)
BATTERY CABLES 2X 2.3 M HIGH-PERFORMANCE CABLES
SURFACE BLACK POWDER COATING
WARRANTY 5 YEAR LIMITED ELECTRICAL WARRANTY AND LIFETIME MECHANICAL WARRANTY
ARTICLE NUMBER 45X12VD
Shipping weight 17.00 kg
Shipping width 0.335 m
Shipping amount 0.215 m
SHIPPING LENGTH 0.480 M
performance
| LINE PULL lb (kg) | LINE SPEED ft/min (m/min) | MOTOR CURRENT (amp) | LAYER OF CABLE | RATED LINE PULL lb (kg) | TOTAL ROPE ON DRUM ft (m) | ||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | ||||
| 0 | 11.6 (3.6) | 12.5 (3.8) | 20 | 15 | 1 | 4,500 (2,041) | 7.6 (2.3) |
| 1,500 (680) | 9.2 (2.8) | 10.5 (3.2) | 70 | 40 | 2 | 3,642 (1,652) | 17.0 (5.2) |
| 2,500 (1,134) | 7.8 (2.4) | 8.5 (2.6) | 100 | 65 | 3 | 3,060 (1,388) | 27.0 (8.3) |
| 3,500 (1,588) | 6.6 (2.0) | 7.2 (2.2) | 140 | 80 | 4 | 2,638 (1,197) | 38.6 (11.8) |
| 4,500 (2,041) | 4.9 (1.5) | 5.9 (1.8) | 200 | 130 | 5 | 2,254 (1,022) | 47.6 (14.5) |
