GET UNSTUCK,
GET GOING!

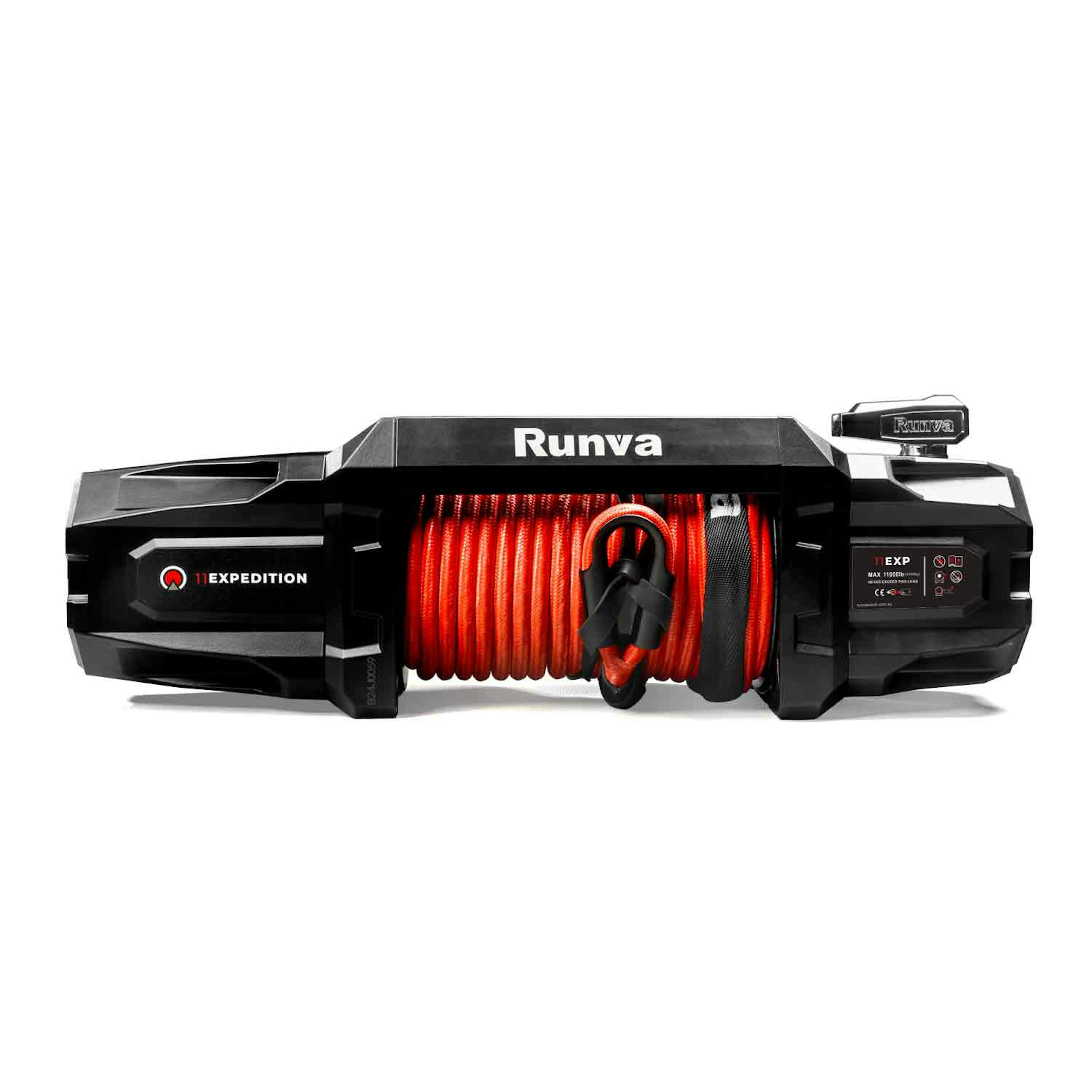

Introducing the new Runva 11EXPEDITION winch, packed with advanced improvements in a completely redesigned housing. This winch is engineered to enhance your off-road recovery experience, making every adventure smoother and safer. The Runva 11EXPEDITION winch features a sleek, low-profile, interlocking rope guide with a guided hook, ensuring that the recovery process is not only easy but also safe. This innovative feature was designed with user safety in mind and minimizes snagging.
and complications, allowing you to fully concentrate on the task at hand. Furthermore, it features a completely redesigned rechargeable remote control that combines functionality and versatility. It includes a battery level indicator, an integrated flashlight for optimal visibility during rescues in low-light conditions, and a wrist strap for added comfort.
- 11,000 lb pulling force
- IP67 protection rating
- Translation ratio of almost 191:1
- Mechanical ratchet brake system
- Wireless, rechargeable remote control
- Wired remote control
- Wireless remote control
- Disconnect switch
Technical data
RATED TENSION FORCE 11,000 LB (4,990 KG)
MOTOR (12 V) 5.0 kW / 6.7 HP | (24V) 6.0 kW / 8.2 HP
Gearbox made entirely of steel, 3-stage planetary gearbox
TRANSLATION RATIO 191:1
CLUTCH TYPE: ROTARY CLUTCH MADE OF STAINLESS STEEL
Position of the clutch handguard : Gearbox can rotate
AUTOMATIC RATCHET BRAKE IN THE TRANSMISSION
ROPE TYPE SYNTHETIC ROPE
ROPE SIZE 25/64" X 85' (11 mm x 25 m) | 25,250 lb rated power
DRUM SIZE 2.48" X 8.5" ( 63 mm x 217 mm
Fastening screw pattern 10" 4.5" x 4.5" (254 mm x 114.3 mm) 4 M10 screws

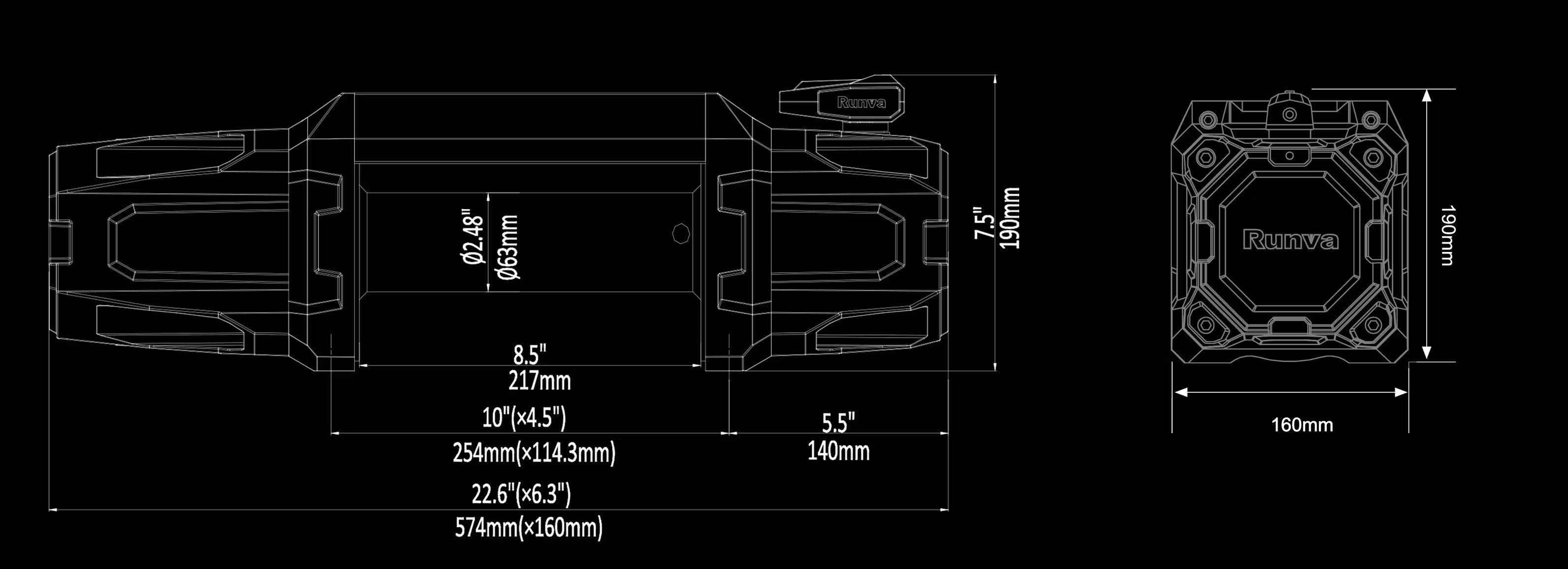

OVERALL DIMENSIONS 22.6" X 6.3" X 7.5" (574MM X 160MM X 190MM)
Remote Control Expedition Wireless Remote
BATTERY CABLES 2X 1.8 M HIGH-PERFORMANCE CABLES
SURFACE BLACK POWDER COATING
WARRANTY 5 YEAR LIMITED ELECTRICAL WARRANTY AND LIFETIME MECHANICAL WARRANTY
performance
| LINE PULL lb (kg) | LINE SPEED ft/min (m/min) | MOTOR CURRENT (amp) | LAYER OF CABLE | RATED LINE PULL lb (kg) | TOTAL ROPE ON DRUM ft (m) | ||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | ||||
| 0 (0) | 36.1 (11.0) | 38 (11.6) | 55 | 40 | 1 | 11,000 (4,990) | 17.4 (5.3) |
| 4,000 (1,814) | 11.5 (3.5) | 13.1 (4.0) | 215 | 120 | 2 | 8,766 (3,976) | 39.4 (12.0) |
| 8,000 (3,629) | 6.6 (2.0) | 6.6 (2.5) | 340 | 200 | 3 | 7,286 (3,305) | 65.0 (19.8) |
| 11,000 (4,990) | 4.0 (1.2) | 5.9 (1.8) | 440 | 250 | 4 | 6,233 (2,827) | 85.3 (26.0) |
