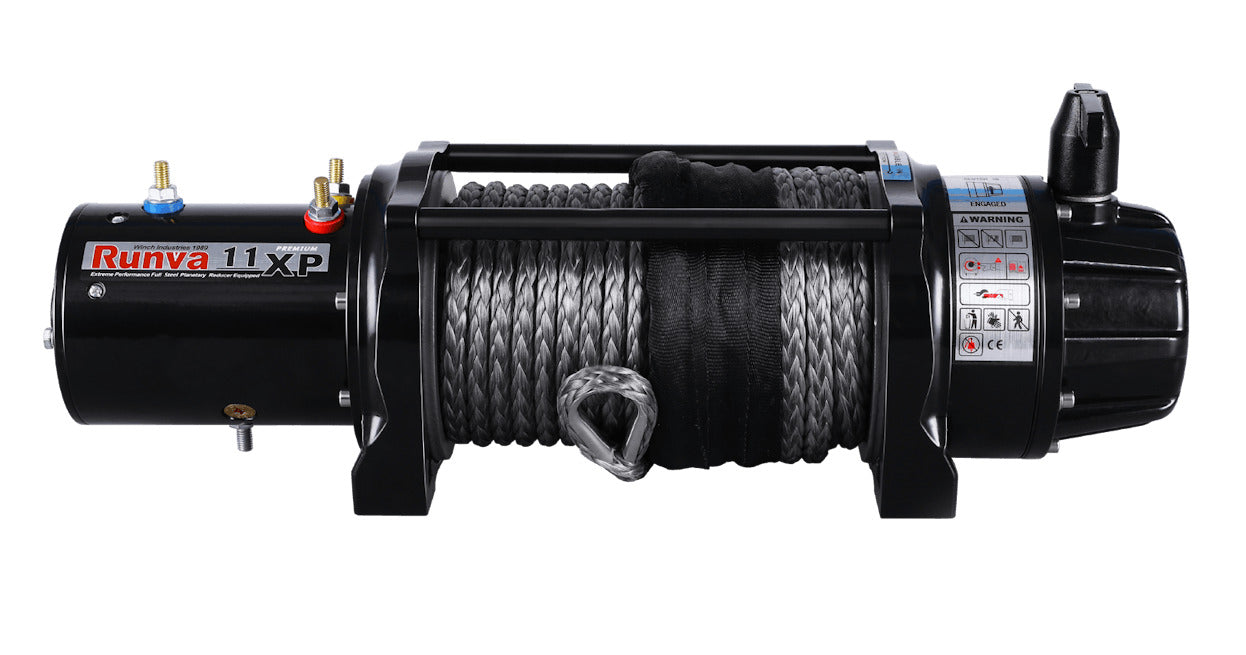

THE WINCH THAT CAN DO ANYTHING. The Runva 11XP Premium truly can do it all. It's perfectly suited for almost all 4x4 vehicles currently on the market – from small to large. With a massive 11,000 lb pulling capacity generated by a powerful and reliable 6.7 hp engine, the transmission is a three-stage planetary gearbox with a robust 228:1 gear ratio to handle even the toughest recoveries. Whether you drive a Hilux, Ranger, Land Cruiser, or any other vehicle, this winch will get you out of any predicament!
This model is also proudly displayed on most of 4WD 24/7's vehicles. If you've seen them use the 11XP Premium to pull vehicles out of the ruts they tackle, you know you're buying a high-quality winch you can rely on. After all the winching they've done over the years, including pulling two linked broken-down vehicles out of a rut, not a single Runva has failed them.
This model boasts all our premium features. Thanks to its full IP67 protection rating, you can feel secure even in the most extreme conditions. The brake is our most advanced ratchet system, located within the gearbox, which is extremely efficient and reliably holds when the winch stops. (The same brake as on our vertical hoist winch). Unlike other conventional braking systems that use brake pads, this brake does not wear out.
The coupling can be easily engaged and disengaged via the rotary coupling system. The 11XP Premium is also fully compatible with our optional Runva air coupling for easy control from the cab.
Technical data
RATED TENSION FORCE 11,000 LB (4,990 KG)
MOTOR (12 V) 5.0 kW/6.7 HP; (24V) 6.0kW/8.2HP
Gearbox made entirely of steel, 3-stage planetary gearbox
TRANSLATION RATIO 228:1
CLUTCH TYPE: ROTARY CLUTCH MADE OF STAINLESS STEEL
Position of the clutch handguard : Gearbox can rotate
AUTOMATIC RATCHET BRAKE FOR LOAD LOCK IN THE TRANSMISSION
CABLE TYPE SYNTHETIC ROPE
ROPE SIZE 10 MM X 25 M (22,500 LB RATING CAPACITY)
DRUM SIZE 63 MM X 217 MM
MOUNTING BOREHOLES 254 MM X 114.3 MM

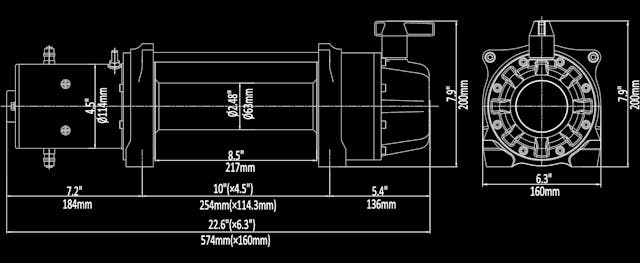

OVERALL DIMENSIONS 574MM X 160MM X 200MM
REMOTE CONTROL HIGH-PERFORMANCE HANDHELD DEVICE + WIRELESS
BATTERY CABLES 2X 1.8 M HIGH-PERFORMANCE CABLES
SURFACE BLACK POWDER COATING
WARRANTY 5 YEAR LIMITED ELECTRICAL WARRANTY AND LIFETIME MECHANICAL WARRANTY
ARTICLE NUMBER 11XPPREMIUM12VD
SHIPPING WEIGHT 37.50 KG
Shipping width 0.330 m
Shipping amount 0.330 m
SHIPPING LENGTH 0.635 M
MEASURING UNIT EA
performance
| LINE PULL lb (kg) | LINE SPEED ft/min (m/min) | MOTOR CURRENT (amp) | LAYER OF CABLE | RATED LINE PULL lb (kg) | TOTAL ROPE ON DRUM ft (m) | ||
|---|---|---|---|---|---|---|---|
| 12V DC | 24V DC | 12V DC | 24V DC | ||||
| 0 | 32.2 (9.8) | 34.4 (10.5) | 75 | 65 | 1 | 11,000 (4,990) | 17.4 (5.3) |
| 4,000 (1,814) | 13.1 (4.0) | 13.8 (4.2) | 220 | 155 | 2 | 8,766 (3,976) | 39.4 (12.0) |
| 8,000 (3,629) | 9.8 (3.0) | 10.5 (3.2) | 320 | 230 | 3 | 7,286 (3,305) | 65.0 (19.8) |
| 11,000 (4,990) | 5.8 (1.8) | 6.6 (2.0) | 420 | 280 | 4 | 6,233 (2,827) | 85.3 (26.0) |
