ARB Front Bull Bar
ARB front bull bars are essential for driving in rural and remote areas. They provide significantly improved protection for sensitive vehicle components in the event of collisions with animals and also serve as a solid base for mounting accessories such as auxiliary lights, winches, and CB antennas.
ARB front bull bars are expertly designed and manufactured to not only ensure maximum functionality but also enhance the vehicle's appearance.

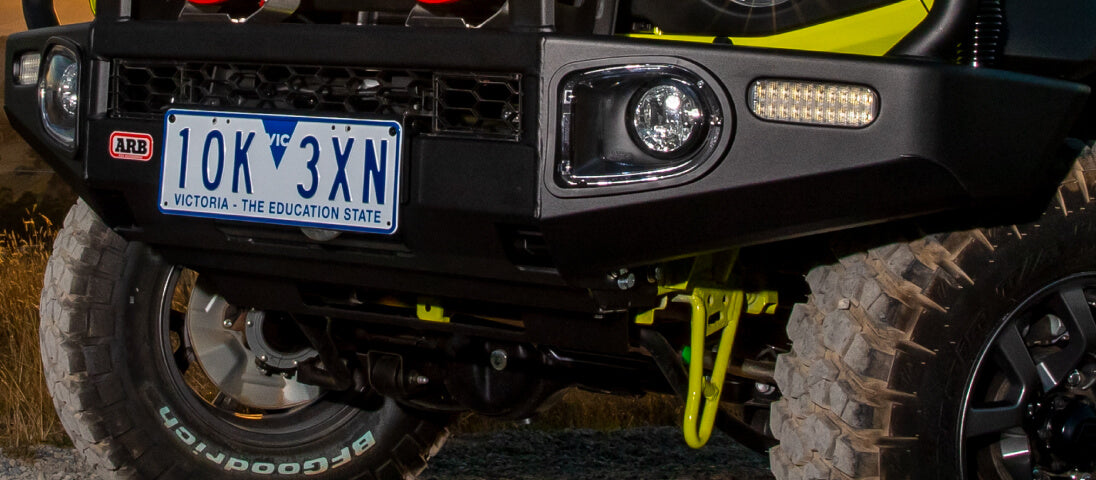

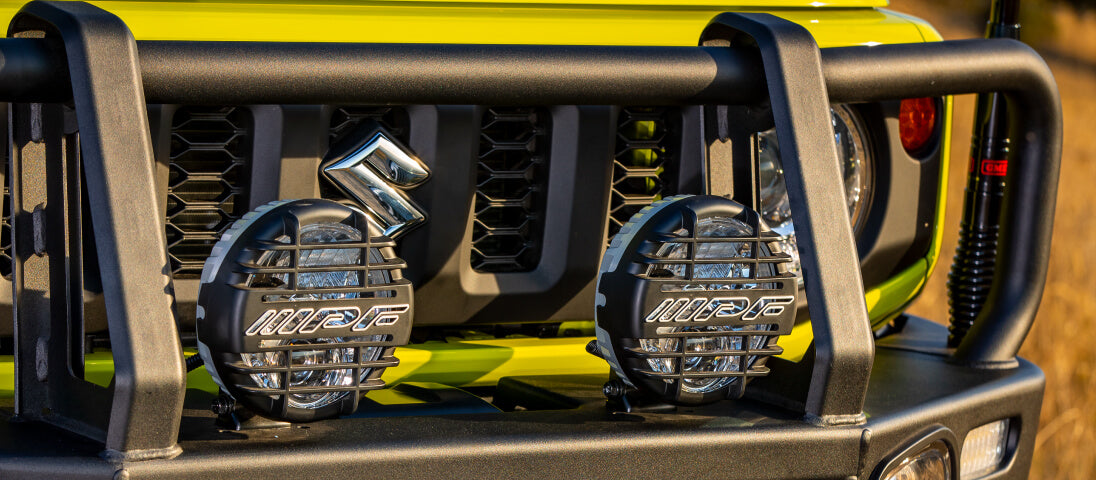

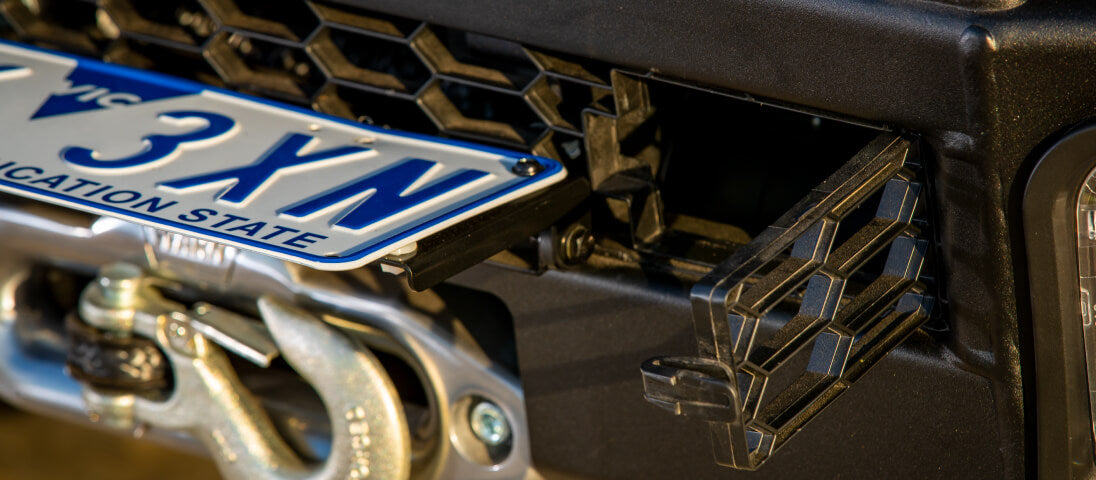

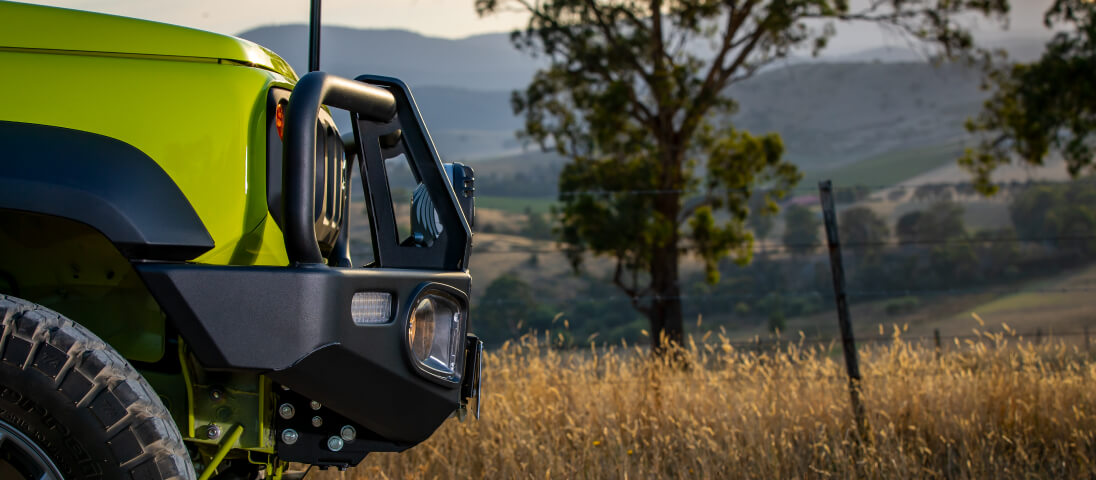

Summit Front Bull Bar
The Summit front bull bar is based on the proven ARB Deluxe design and incorporates a fresh, contemporary design language that perfectly complements modern vehicles.
Summit front bull bars are compatible with winches and offer next-generation protection and styling for your vehicle. Mounting brackets for ARB Intensity LED, IPF, and Bushranger driving lights are integrated into the upper plate of the front bull bar, while the ARB LED turn signal and side marker light assembly is included as standard.
Supplied with a durable, textured black "Integrit" powder coating. "Integrit" is not suitable for color matching.
Note: The front bull bar pictured is fitted with an original Suzuki fog light.
Features
- Vehicle-specific design, suitable for the 2019 Suzuki Jimny model year
- Robust steel construction for maximum protection
- Features ARB's proven, multi-curved, upward-sweeping, and tapering wing design for optimal strength and approach angle
- 10 mm radius on the wings and in the center section
- Technically advanced, airbag-compatible mounting system that attaches to the chassis using high-strength M10 fasteners
- Split upper section for maximum strength and optimal airflow
- Three-piece grille design for the split tray
- 47.6 mm outer tube diameter and center crossmember
- Contoured support brackets
- Pressed upper tray and aluminum winch cover plate (black powder-coated)
- Combination bar, suitable for applications with or without a winch
- Two ARB Jack or Hi-Lift jack points next to the bar supports
- Suitable for Warn and Mid-Frame winches up to 8,000 lb
- Pre-wired for the installation of ARB Intensity LEDs and a range of IPF and Bushranger driving lights
- Pre-wired for factory headlight washers
- Pre-wired for factory fog lights
- Pre-wired for optional ARB fog light covers
- Includes ARB LED turn signals and side marker light
- Finished with a textured black Integrit powder coating. Integrit is not suitable for color coding.
This item is supplied without a parts certificate or test report. Installation voids the vehicle's operating license unless the inspection required by Section 19(2) in conjunction with Section 21 of the StVZO is carried out without delay. Therefore, after the technical modification has been carried out, the vehicle must be presented to an officially recognized expert at a technical inspection agency without delay.
However, the respective expert/inspector has the right to refuse registration!
