Description
HIGH PERFORMANCE - ACCESSIBLE PRICE

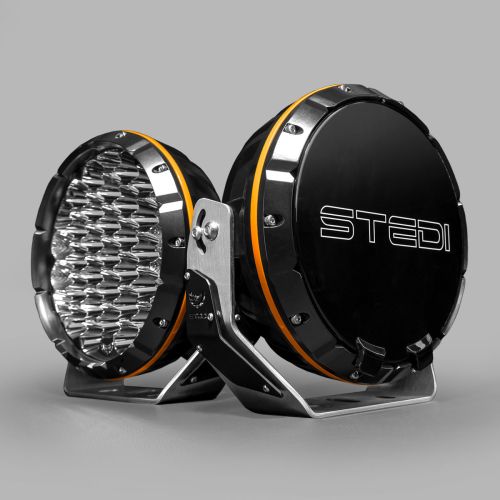

We welcome the Type-X™ Sport into the STEDI™ bloodline; our most affordable driving light yet. STEDI™'s goal is to provide high performance, high quality driving lights at affordable prices. Compare the build quality, performance and feature list to other offerings on the market and you'll find our Type-X™ Sport is unmatched.
LEGENDARY TYPE-X DNA

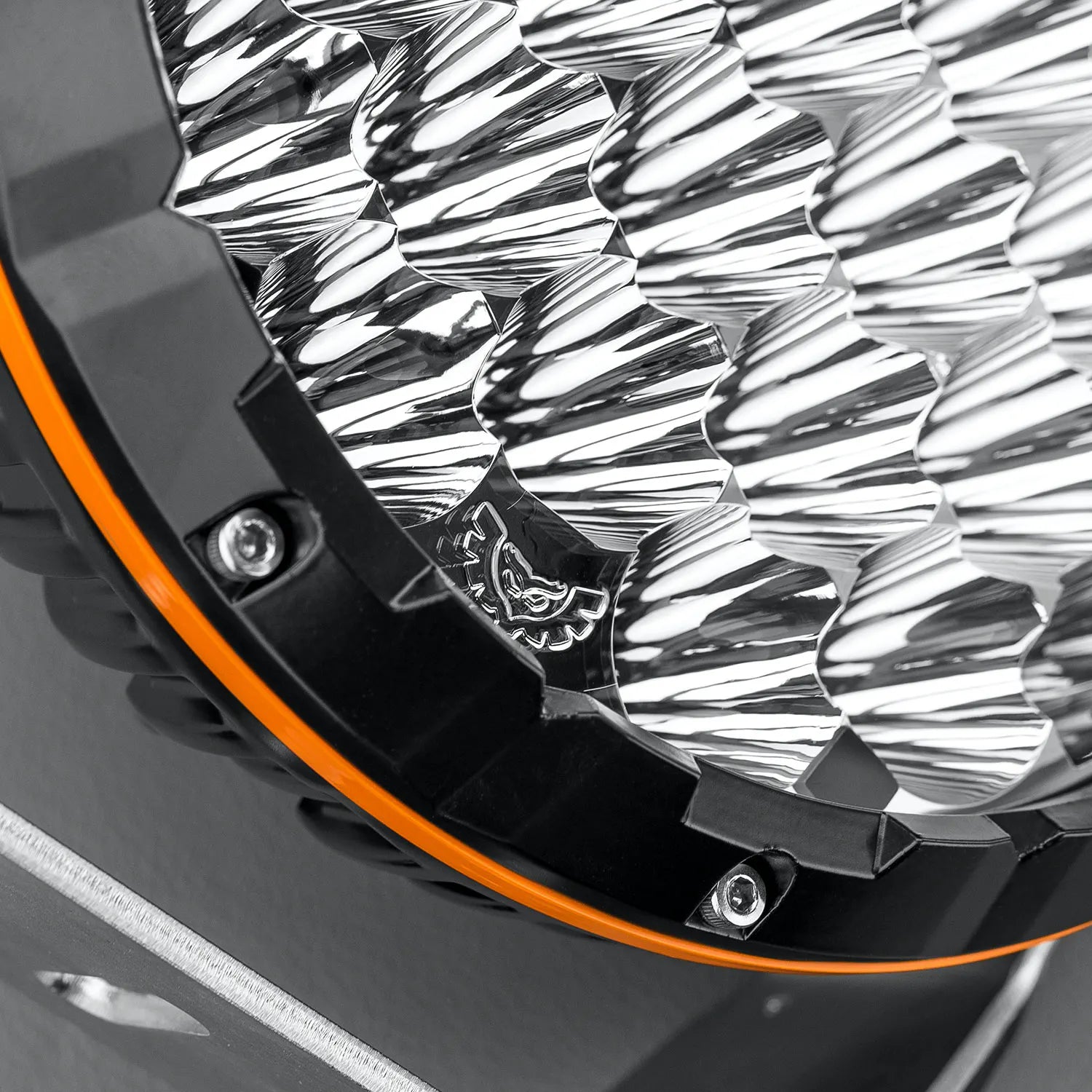

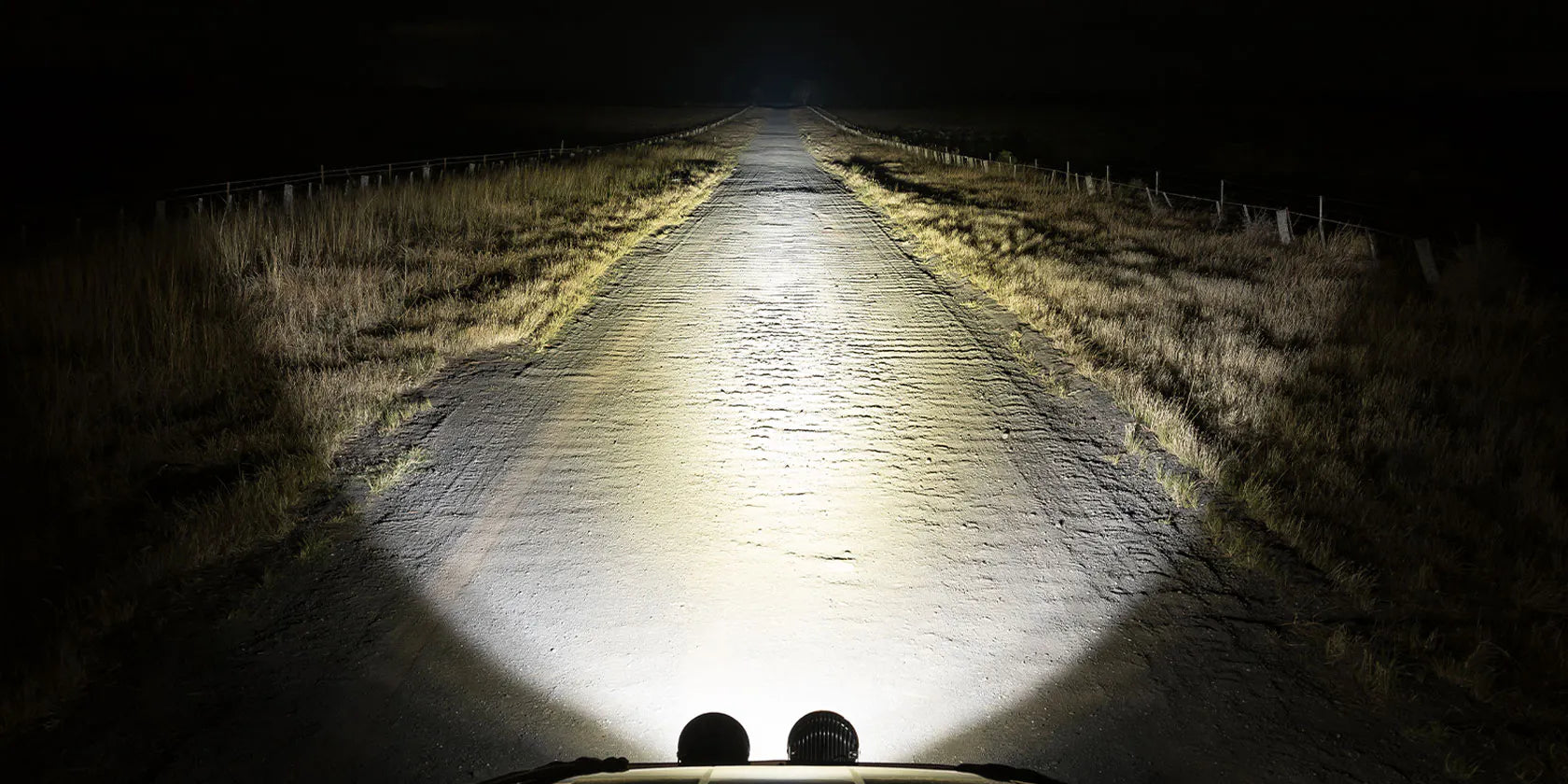

The Type-X™ Sport has inherited much of the Type-X™ DNA, but we increased the depth of the optics by 35% to achieve a perfectly collimated beam and the resulting higher light intensity. The beam diameter offers an excellent balance between width and throw, sending the light up to 1,050 m. Four specially built-in wide-angle optics scatter the light in the near field and blend seamlessly into the spot beam.
STEDI™ DESIGN LANGUAGE

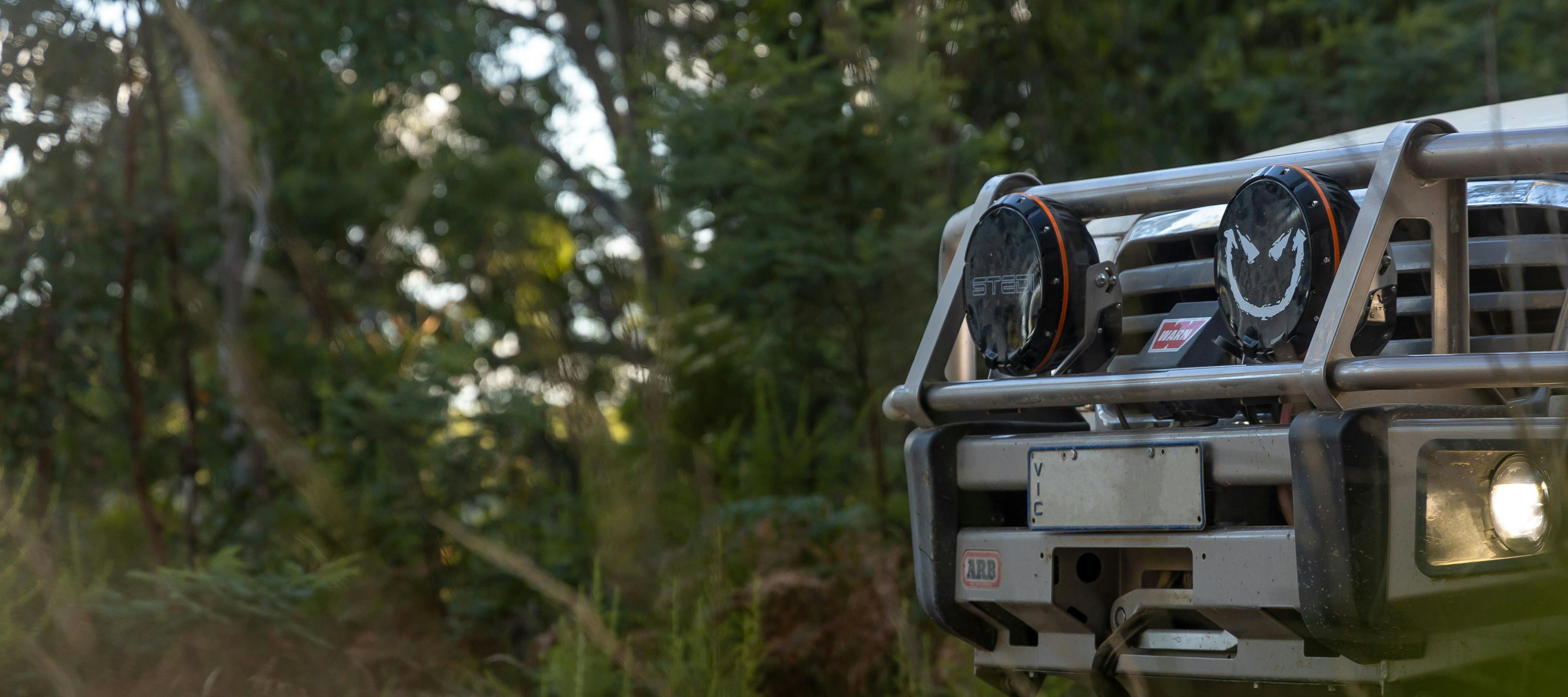

Some people call it the little things, to us it's literally everything. We thought about the most trivial geometry and design elements to create a visually stunning light. The included brackets (with laser-cut STEDI™ branding) allow the Type-X™ Sport to be mounted in a number of locations on your vehicle.(Registered Design Number 201914860 & Registered Trademark).
The nitty
gritty.
THE NERDY DETAILS

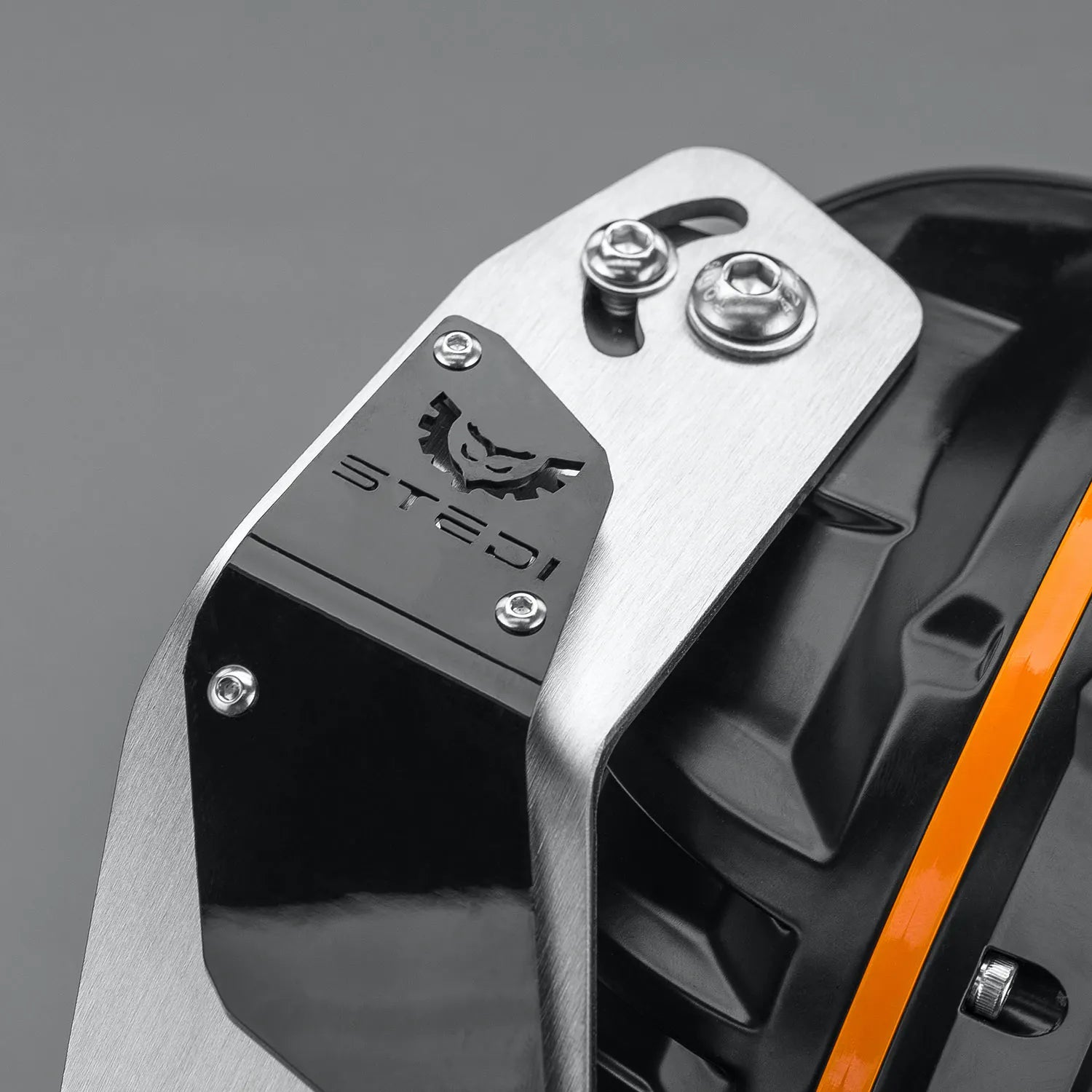

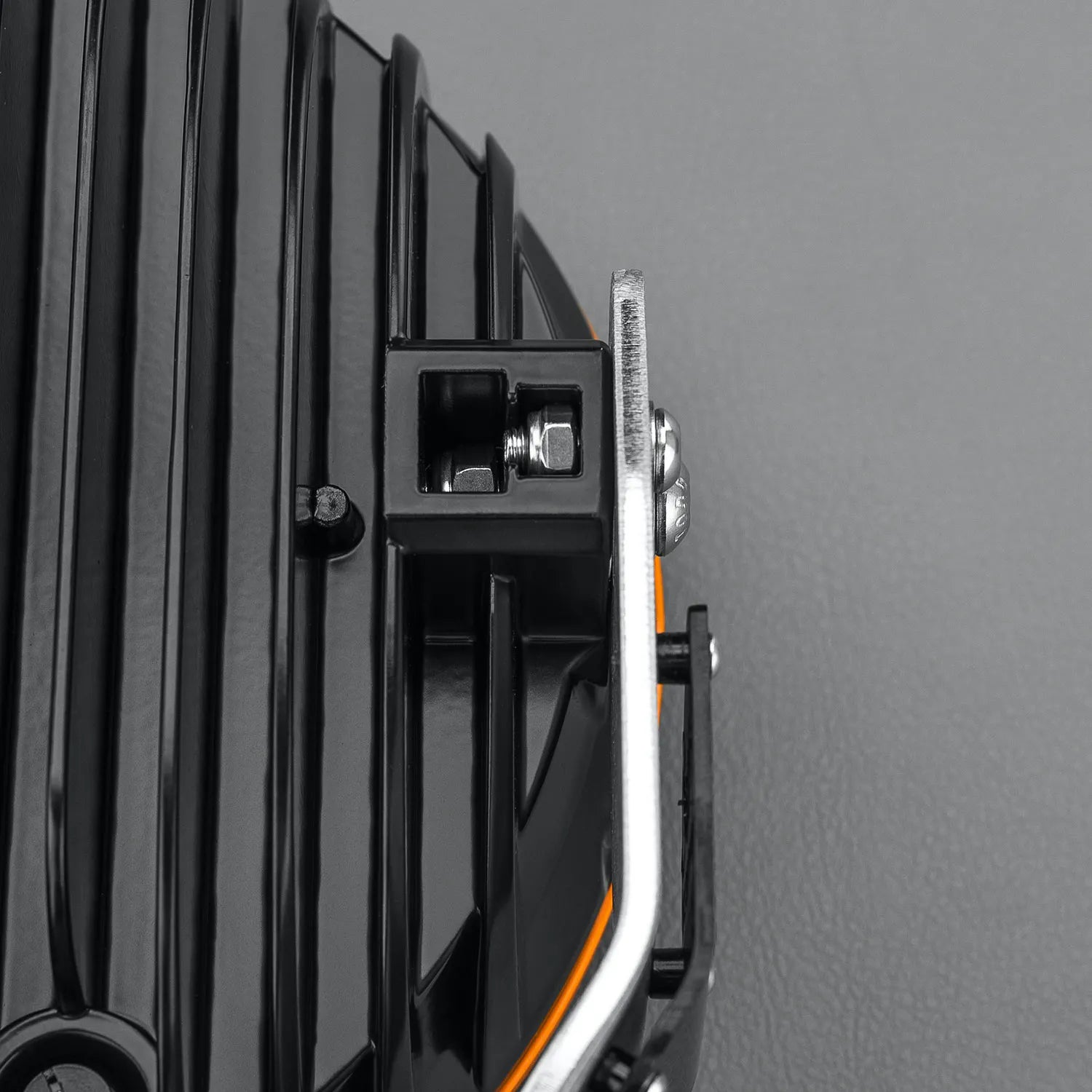

- 4mm thick 304 series stainless steel mounting bracket which includes a rubber damper and an additional 3mm thick top plate.

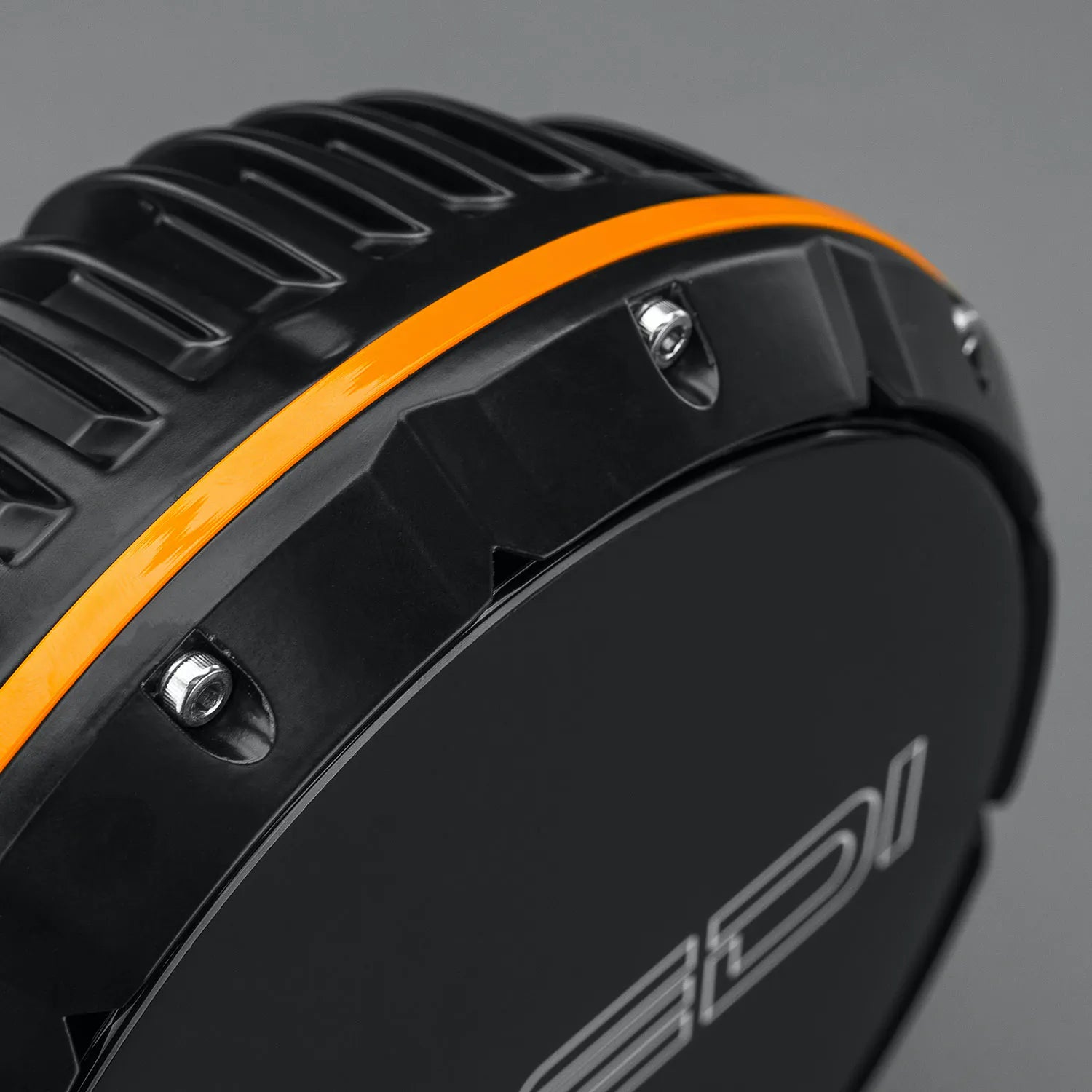

- A360.0 cast housing | Superior strength and corrosion resistance.
- 3mm thick GE Lexan lens with hard coating | Virtually unbreakable and scratch resistant
- 100% polyester UV and abrasion resistant powder coating
- IP68 | Dust and particle proof + waterproof up to 3 meters
- Nitto Denko pressure equalization valve with diaphragm | Protects against the ingress of water, dust and contaminants.
- Environmentally sealed Deutsch® DTP-2 connector
- EMI and RFI suppression circuits - We guarantee it.
- Each TYPE-X Sport consists of 36 OSRAM OSLON LEDs, selected for their high luminous flux and perfectly matched optical properties.
- Four wide beam reflectors form a side-molded floodlight pattern designed to scatter as little valuable light as possible into the sky. Separate snap-on wide beam covers are also available for environments that require increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with an excellent color rendering index (CRI)
(Registered Design Number 201914860 & Registered Trademark).
Technical Specifications
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 20,780 (Pair) |
| TESTED LUMENS | 14,950 (Pair) |
| AMP DRAW | 9.8A @ 13.2v (each) |
| POWER DRAW | 129W |
| CANDELA | 1,102,500cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg (each) |
| OPERATING TEMP | -40°C - 60°C |

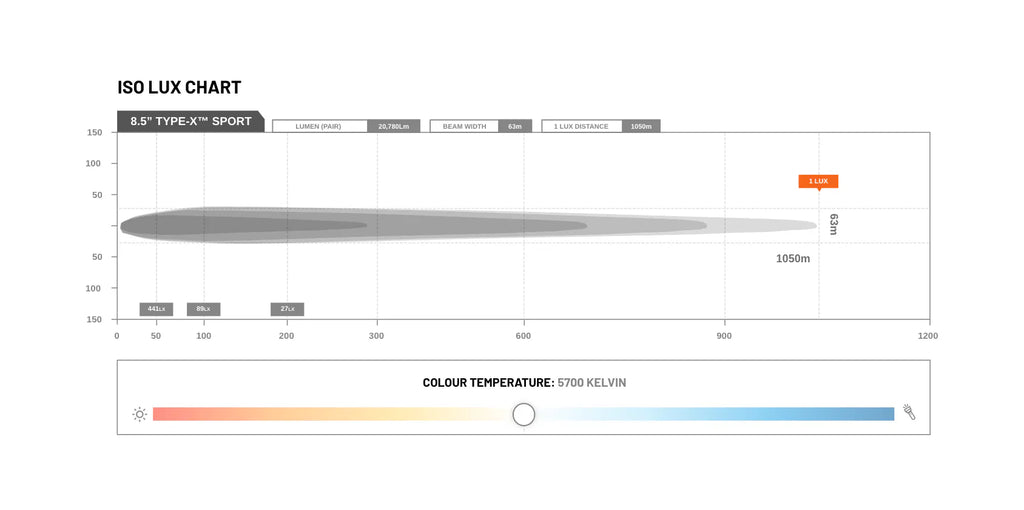

| PHOTOMETRIC DATA | |
| 10m | 11,025Lx |
| 50m | 441 lux |
| 200m | 27 lux |
| 300m | 12Lx |
| 400m | 6Lx |
| 1,000m | 1.1Lx |
| 1,050m | 1Lx |
